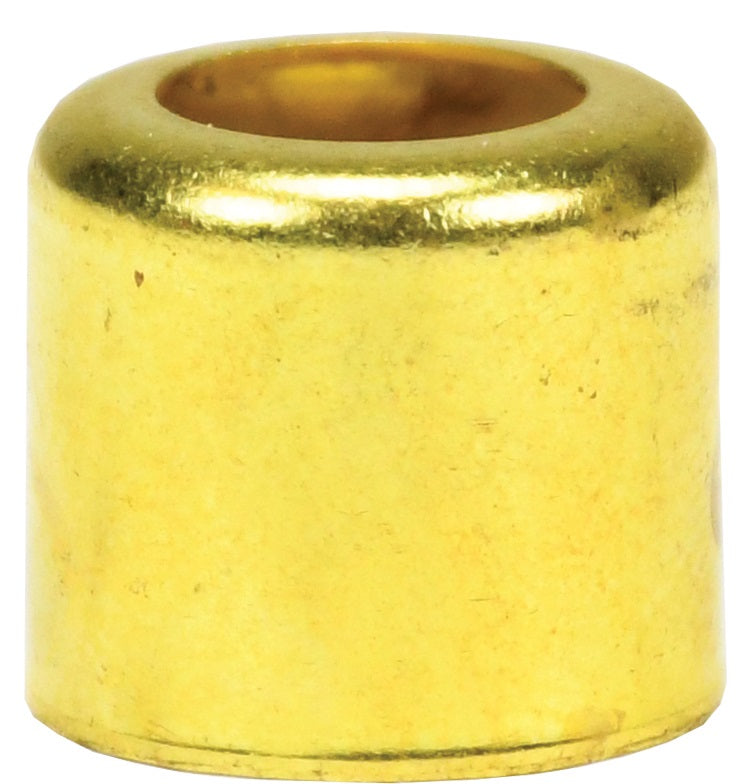

BFL575 by Dixon Valve | Hose Crimp Ferrule for Air & Fluid | 0.575" Ferrule ID | Brass | (Pack of 50)

BFL575 by Dixon Valve | Hose Crimp Ferrule for Air & Fluid | 0.575" Ferrule ID | Brass | (Pack of 50)

Save $1.33 Save $1.33
$18.00
$18.00 - $18.00
$18.00
$16.67
$16.67 - $16.67
$16.67

Dixon Valve
Hose Crimp Ferrule for Air & Fluid

For use with medium weight air hose.


Package Quantity: 50 EA

Specifications for Variant SKU: BFL575 Dixon | 50 |
Shape (Orientation): No Orientation
Material(s): Brass
Material:
  • Brass
Part Number Ferrule ID Ferrule Length End Hole Size Metal Gauge Ribbed Die Plain Die Standard Ind.
Pt Num.		 Previous
Part Number
BFM478 .478" 11/16" 21/64" .024" R41 P41/ P42 4750 2004750C
BFM500 .500" 1" 11/32" .024" R40 P40 7322 2005005C
BFM525 .525" 1" 3/8" .024" R39 P39 7323 2005255C
BFM531 .531" 1" 7/16" .024" R39 P39 7324 2005310C
BFM562 .562" 1" 7/16" .024" R37 P38 7325 2005620C
BFM593 .593" 1" 7/16" .024" R36 P37 7326 2005930C
BFM625 .625" 1" 7/16" .024" R35 P36 7327 2006255C
BFM656 .656" 1" 7/16" .024" R34 P35 7328 2006560C
BFM687 .687" 1" 1/2" .024" R33 P34 7329 2006900C
BFM718 .718" 1" 5/8" .024" R31 P32 7330 2007180C
BFM718B .718" 1" 1/2" .024" R31 P32 7330B -
BFM750 .750" 1" 5/8" .024" R30 P31 7331 2007505C
BFM750B .750" 1" 1/2" .024" R30 P31 7331B -
BFM781 .781" 1" 5/8" .024" R29 P30 7332 2007810C
BFM781B .781" 1" 1/2" .024" R29 P30 7332B -
BFM812 .812" 1" 5/8" .024" R28 P29 7333 2008120C
BFL380 .380" 1/2" 17/64" .016" R44 P45 622 -
BFL400 .400" 15/32" 17/64" .020" R44 P44 619 2004000C
BFL410 .410" 1/2" 17/64" .016" R43 P44 620 -
BFL450 .450" 9/16" 11/32" .016" R41 P42 769 2004530C
BFL500 .500" 1/2" 11/32" .016" R40 P41 624 2005000C
BFL525 .525" 1/2" 11/32" .016" R39 P40 625 2005250C
BFL548 .548" 31/64" 3/8" .015" R38 P39 626 2005500C
BFL564 .564" 3/4" 3/8" .019" R37 P38 3588 -
BFL575 .575" 31/64" 15/32" .019" R37 P38 KK -
BFL600 .600" 1/2" 1/2" .019" R36 P37 JJ -
BFL625 .625" 1/2" 1/2" .019" R35 P36 II 2006250C
BFL650 .650" 1/2" 1/2" .019" R34 P35 HH 2006500C
BFL675 .675" 33/64" 1/2" .019" R34 P34 GG 2006750C
BFL725 .725" 17/32" 1/2" .019" R31 P32 EE 2007250C
BFL750 .750" 17/32" 1/2" .019" R30 P32 DD 2007500C
BFL775 .775" 17/32" 1/2" .016" R31 P31 CC 2007750C
