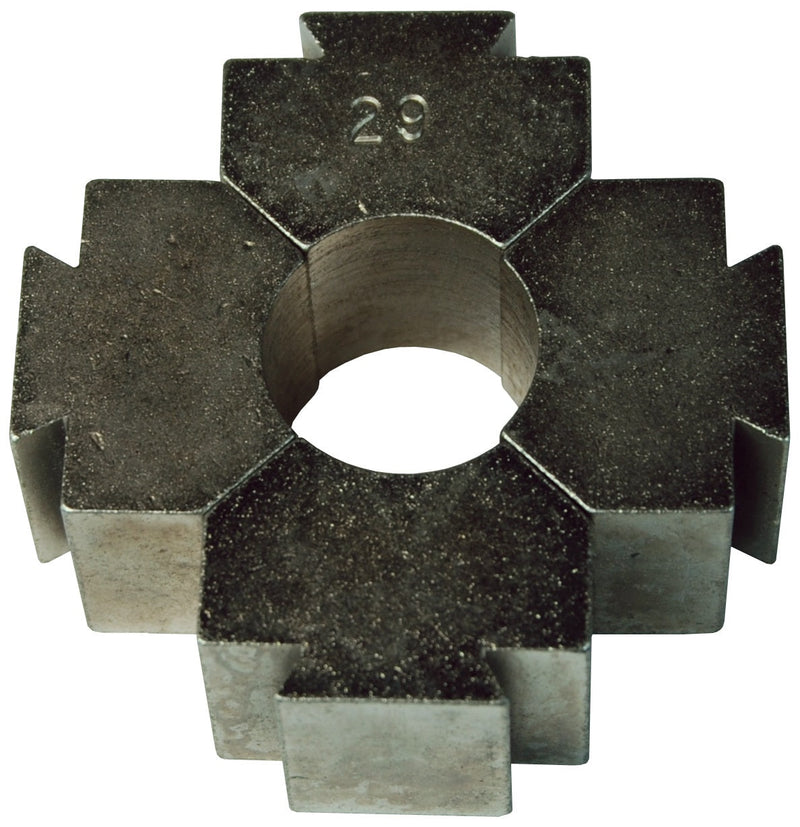

P44 by Dixon Valve | Plain Die | for use on BFL400, BFL410 (.400", .410" ID) Brass Ferrules

P44 by Dixon Valve | Plain Die | for use on BFL400, BFL410 (.400", .410" ID) Brass Ferrules

Save $103.19 Save $103.19
$257.98
$257.98 - $257.98
$257.98
$154.79
$154.79 - $154.79
$154.79

Dixon Valve
Plain Ferrule Crimper Die
Specifications for Variant SKU: P44 Dixon
Material(s): Brass
Features:
  • For use with 5111A and 1765A ferrule machines.
  • Dies for ferrule machines are available in standard sets for all ferrules as tabulated (4 segments to a set).
Part Number Used On Ferrule ID Stnd Ind Part # Bore/Crimp Diameter* Weight
(Lbs)
P1 BFMW1500 1.500" 1500 1.450" 0.2500
P5 BFMW1400 1.400" D 1.350" 0.2550
P10 BFMW1275 1.275" 875-I 1.225" 0.2950
P12 BFMW1225 1.225" 875-K 1.175" 0.3200
P14 BFW1175 1.175" 7088A 1.125" 0.3400
P15 BFMW1150 1.150" 7104A 1.100" 0.3400
P17 BFMW1100 1.100" 5027A 1.050" 0.3600
P19 BFMW1050 1.050" 3605 1.000" 0.3930
P20 BFW1025 1.025" 7114A 0.975" 0.3800
P22 BFW975 .975" 5028A 0.925" 0.3950
P24 BFW925 .925" 7242A 0.875" 0.4100
P25 BFW900 .900" 5029A 0.850" 0.3750
P26 BFW875 .875" 7244A 0.825" 0.4250
P27 BF850 .850" Z 0.800" 0.4300
P28 BF825 .825" - 0.775" 0.4350
P29 BFM812, BF800 .812", .800" 7333 0.750" 0.4400
P30 BFM781, BFM781B .781" 7332, 7332B 0.725" 0.4450
P31 BFM750, BFM750B, BFL775 .750", .775" 7331, 7331B 0.700" 0.4700
P32 BFM718, BFM718B, BFL725, BFL750 .718", .725", .750" 7330, 7330B, EE, DD 0.675" 0.4550
P34 BFM687, BFL675 .687", .675" 7329, GG 0.625" 0.5000
P35 BFM656, BFL650 .656", .650" 7328, HH 0.600" 0.4750
P36 BFM625, BFL625 .625" 7327, II 0.575" 0.4750
P37 BFM593, BFL600 .593", .600" 7326, JJ 0.550" 0.4800
P38 BFM562, BFL564, BFL575 .562", .564", 575" 7325, 3588, KK 0.525" 0.5000
P39 BFM525, BFM531, BFL548 .525", .531", .548" 7323, 7324, 626 0.500" 0.4900
P40 BFM500, BFL525 .500", .525" 7322, 625 0.475" 0.4800
P41 BFM478, BFL500 .478", .500" 624 0.450" 0.4950
P42 BFM478, BFL450 .478", .450" 4750, 769 0.450" 0.5000
P44 BFL400, BFL410 .400", .410" 619, 620 0.375" 0.5050
P45 BFL380 .380" 622 0.350" 0.5100

* Plain die bore diameter can be used as crimp spec ±.005.
