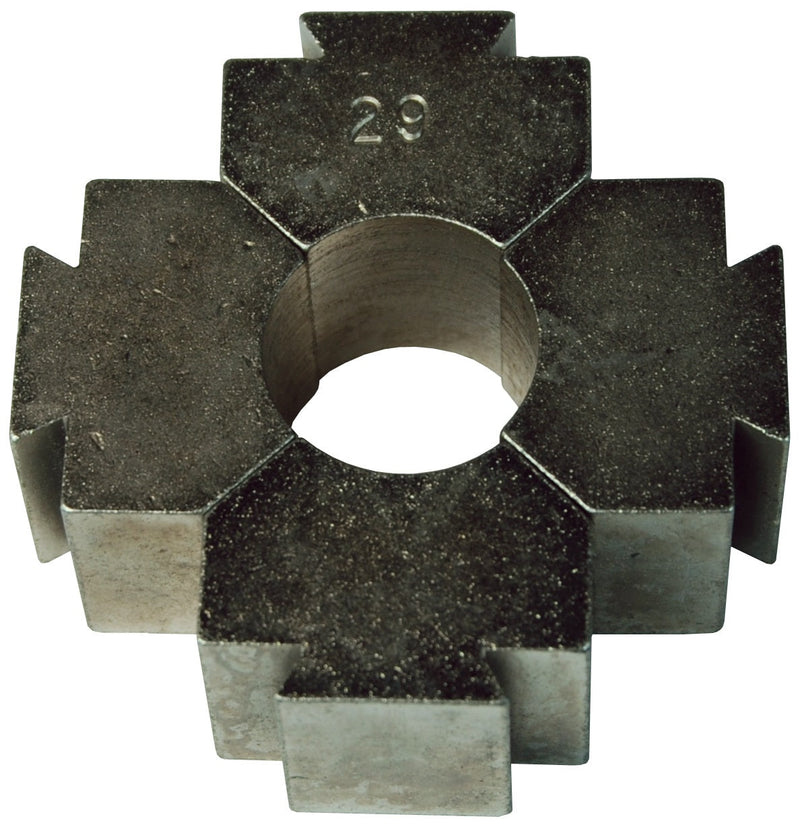

P34 by Dixon Valve | Plain Die | for use on BFM687, BFL675 (.687", .675" ID) Brass Ferrules

P34 by Dixon Valve | Plain Die | for use on BFM687, BFL675 (.687", .675" ID) Brass Ferrules

Save $16.69 Save $16.69
$150.19
$150.19 - $150.19
$150.19
$133.50
$133.50 - $133.50
$133.50

Dixon Valve
Plain Ferrule Crimper Die
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: P34 Dixon
Material(s): Brass
Features:
  • For use with 5111A and 1765A ferrule machines.
  • Dies for ferrule machines are available in standard sets for all ferrules as tabulated (4 segments to a set).
Part Number Used On Ferrule ID Stnd Ind Part # Bore/Crimp Diameter* Weight
(Lbs)
P1 BFMW1500 1.500" 1500 1.450" 0.2500
P5 BFMW1400 1.400" D 1.350" 0.2550
P10 BFMW1275 1.275" 875-I 1.225" 0.2950
P12 BFMW1225 1.225" 875-K 1.175" 0.3200
P14 BFW1175 1.175" 7088A 1.125" 0.3400
P15 BFMW1150 1.150" 7104A 1.100" 0.3400
P17 BFMW1100 1.100" 5027A 1.050" 0.3600
P19 BFMW1050 1.050" 3605 1.000" 0.3930
P20 BFW1025 1.025" 7114A 0.975" 0.3800
P22 BFW975 .975" 5028A 0.925" 0.3950
P24 BFW925 .925" 7242A 0.875" 0.4100
P25 BFW900 .900" 5029A 0.850" 0.3750
P26 BFW875 .875" 7244A 0.825" 0.4250
P27 BF850 .850" Z 0.800" 0.4300
P28 BF825 .825" - 0.775" 0.4350
P29 BFM812, BF800 .812", .800" 7333 0.750" 0.4400
P30 BFM781, BFM781B .781" 7332, 7332B 0.725" 0.4450
P31 BFM750, BFM750B, BFL775 .750", .775" 7331, 7331B 0.700" 0.4700
P32 BFM718, BFM718B, BFL725, BFL750 .718", .725", .750" 7330, 7330B, EE, DD 0.675" 0.4550
P34 BFM687, BFL675 .687", .675" 7329, GG 0.625" 0.5000
P35 BFM656, BFL650 .656", .650" 7328, HH 0.600" 0.4750
P36 BFM625, BFL625 .625" 7327, II 0.575" 0.4750
P37 BFM593, BFL600 .593", .600" 7326, JJ 0.550" 0.4800
P38 BFM562, BFL564, BFL575 .562", .564", 575" 7325, 3588, KK 0.525" 0.5000
P39 BFM525, BFM531, BFL548 .525", .531", .548" 7323, 7324, 626 0.500" 0.4900
P40 BFM500, BFL525 .500", .525" 7322, 625 0.475" 0.4800
P41 BFM478, BFL500 .478", .500" 624 0.450" 0.4950
P42 BFM478, BFL450 .478", .450" 4750, 769 0.450" 0.5000
P44 BFL400, BFL410 .400", .410" 619, 620 0.375" 0.5050
P45 BFL380 .380" 622 0.350" 0.5100

* Plain die bore diameter can be used as crimp spec ±.005.
