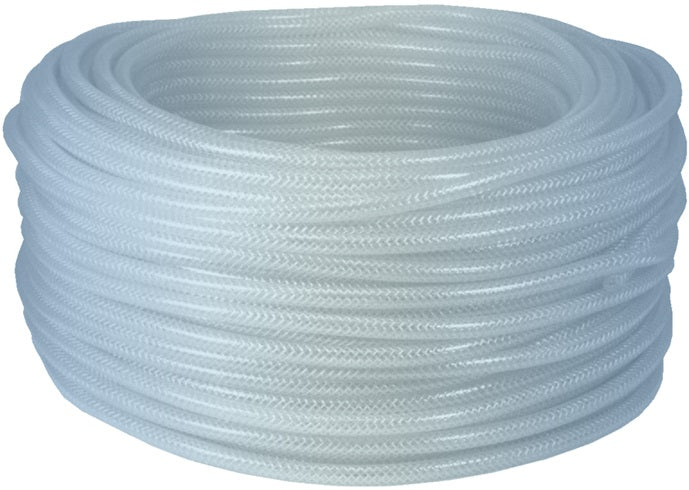

BR1014 by Dixon Valve | Domestic PVC Braided Tubing | 0.906" OD | 5/8" ID | 300ft Length

BR1014 by Dixon Valve | Domestic PVC Braided Tubing | 0.906" OD | 5/8" ID | 300ft Length

Save $89.94 Save $89.94
$809.45
$809.45 - $809.45
$809.45
$719.51
$719.51 - $719.51
$719.51

Dixon Valve
PVC Braided Tubing | Domestic

For use with standard shank fittings in low-pressure liquid and pneumatic applications.
Specifications for Variant SKU: BR1014 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.625in
Outer Diameter: 0.875in
Tubing Construction: PVC
Features:
  • High grade tensile strength polyester yarn reinforcement.
  • Shipped in coils, sold only in lengths shown below.
Specifications:
  • Temperature range: 27°F to 150°F (-3C to 66°C).
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
BR0609 0.625" 3/8" 265 300ft
BR0812 0.728" 1/2" 215 300ft
BR1014 0.906" 5/8" 200 300ft
BR1218 1.024" 3/4" 150 300ft
BR2027 1.732" 1-1/4" 110 100ft
BR2431 1.950" 1-1/2" 90 100ft
