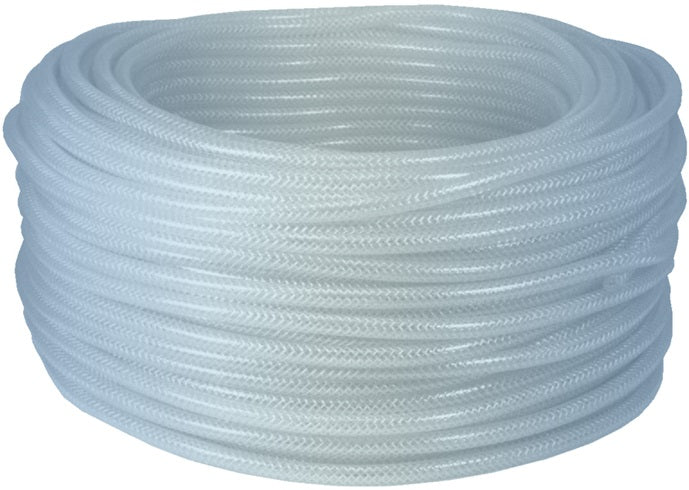

BR2027 by Dixon Valve | Domestic PVC Braided Tubing | 1.732" OD | 1-1/4" ID | 100ft Length

BR2027 by Dixon Valve | Domestic PVC Braided Tubing | 1.732" OD | 1-1/4" ID | 100ft Length

Save $516.15 Save $516.15
$1,290.38
$1,290.38 - $1,290.38
$1,290.38
$774.23
$774.23 - $774.23
$774.23

Dixon Valve
PVC Braided Tubing | Domestic

For use with standard shank fittings in low-pressure liquid and pneumatic applications.
Specifications for Variant SKU: BR2027 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.25in
Outer Diameter: 1.6875in
Tubing Construction: PVC
Features:
  • High grade tensile strength polyester yarn reinforcement.
  • Shipped in coils, sold only in lengths shown below.
Specifications:
  • Temperature range: 27°F to 150°F (-3C to 66°C).
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
BR0609 0.625" 3/8" 265 300ft
BR0812 0.728" 1/2" 215 300ft
BR1014 0.906" 5/8" 200 300ft
BR1218 1.024" 3/4" 150 300ft
BR2027 1.732" 1-1/4" 110 100ft
BR2431 1.950" 1-1/2" 90 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
