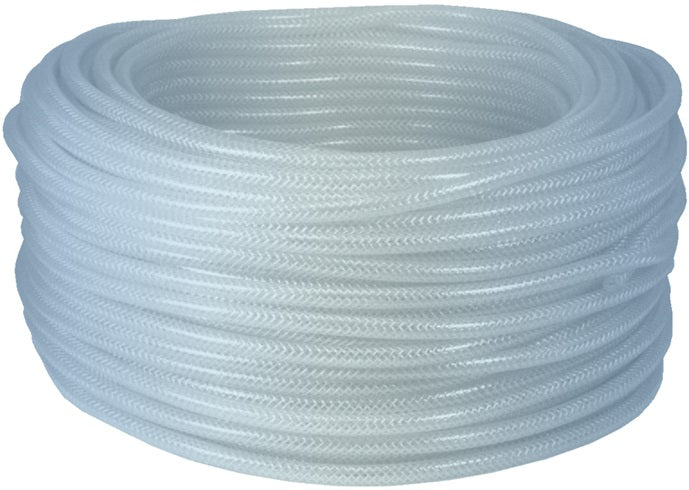

BR0812 by Dixon Valve | Domestic PVC Braided Tubing | 0.728" OD | 1/2" ID | 300ft Length

BR0812 by Dixon Valve | Domestic PVC Braided Tubing | 0.728" OD | 1/2" ID | 300ft Length

Save $35.13 Save $35.13
$462.59
$462.59 - $462.59
$462.59
$427.46
$427.46 - $427.46
$427.46

Dixon Valve
PVC Braided Tubing | Domestic

For use with standard shank fittings in low-pressure liquid and pneumatic applications.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BR0812 Dixon
Series: Plastic Fittings and Tubing
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.5in
Outer Diameter: 0.75in
Tubing Construction: PVC
Features:
  • High grade tensile strength polyester yarn reinforcement.
  • Shipped in coils, sold only in lengths shown below.
Specifications:
  • Temperature range: 27°F to 150°F (-3C to 66°C).
Clear PVC
Part Number		 Size Working Pressure
PSI @ 70°F (21°C)		 Length
O.D. I.D.
BR0609 0.625" 3/8" 265 300ft
BR0812 0.728" 1/2" 215 300ft
BR1014 0.906" 5/8" 200 300ft
BR1218 1.024" 3/4" 150 300ft
BR2027 1.732" 1-1/4" 110 100ft
BR2431 1.950" 1-1/2" 90 100ft
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
