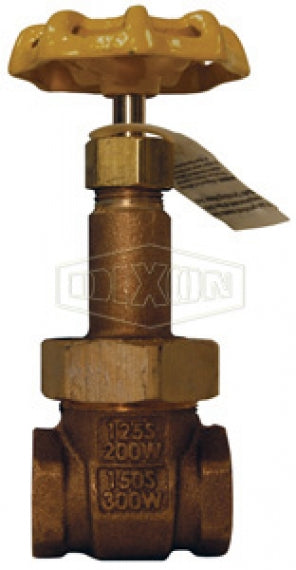

DBGV50 by Dixon Valve | Domestic Gate Valve| 1/2" Female NPT x 1/2" Female NPT | Bronze

DBGV50 by Dixon Valve | Domestic Gate Valve | 1/2" Female NPT x 1/2" Female NPT | Bronze

$126.59 - $126.59
$126.59
$129.40
$129.40 - $129.40
$129.40

Dixon Valve & Coupling
Domestic Gate Valve | Bronze
Specifications for Variant SKU: DBGV50 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Class 150.
  • Union bonnet.
  • ASME B1.20.1.
  • Grafoil® packing.
  • Rising stem.
  • Solid disc.
Materials:
  • Bronze.
  • Malleable iron handwheel.
Specifications:
  • Temperature range: -20°F to 406°F (-29°C to 208°C).
  • Pressure rating: 300 PSI cold working pressure.
    150 PSI steam working pressure.
Approvals:
  • 100% factory tested.
Part Number Female NPT x Female NPT
DBGV50 1/2"
DBGV75 3/4"
DBGV100 1"
DBGV125 1-1/4"
DBGV150 1-1/2"
DBGV200 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
