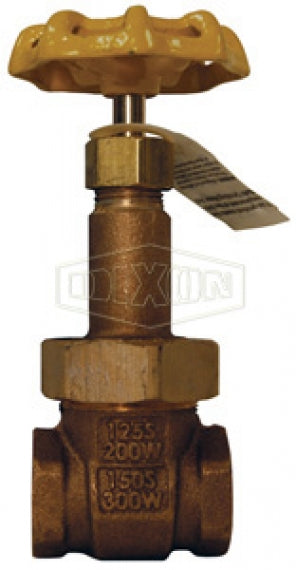

DBGV125 by Dixon Valve | Domestic Gate Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze

Name: DBGV125 by Dixon Valve | Domestic Gate Valve | 1-1/4" Female NPT x 1-1/4" Female NPT | Bronze
Brand: Dixon
SKU: DBGV125 Dixon
Price: 299.29 USD
Availability: InStock

$292.78 - $292.78

$292.78

$299.29

$299.29 - $299.29

$299.29

Dixon Valve & Coupling
Domestic Gate Valve | Bronze

Quantity

Specifications for Variant SKU: DBGV125 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female NPT, 1-1/4in Female NPT, Some Ends Match
Material(s):	Bronze

Features:
Class 150. Union bonnet. ASME B1.20.1. Grafoil® packing. Rising stem. Solid disc.
Materials:
Bronze. Malleable iron handwheel.
Specifications:
Temperature range: -20°F to 406°F (-29°C to 208°C). Pressure rating: 300 PSI cold working pressure. 150 PSI steam working pressure.
Approvals:
100% factory tested.

Part Number	Female NPT x Female NPT
DBGV50	1/2"
DBGV75	3/4"
DBGV100	1"
DBGV125	1-1/4"
DBGV150	1-1/2"
DBGV200	2"
