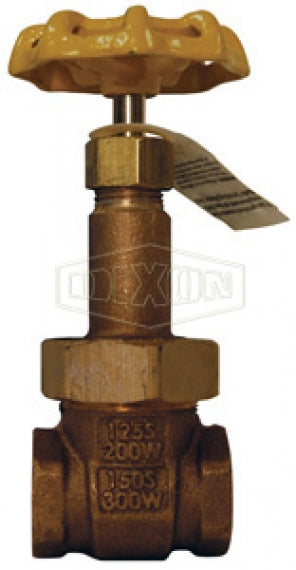

DBGV150 by Dixon Valve | Domestic Gate Valve| 1-1/2" Female NPT x 1-1/2" Female NPT | Bronze

DBGV150 by Dixon Valve | Domestic Gate Valve | 1-1/2" Female NPT x 1-1/2" Female NPT | Bronze

Save $245.89 Save $245.89
$614.72
$614.72 - $614.72
$614.72
$368.83
$368.83 - $368.83
$368.83

Dixon Valve & Coupling
Domestic Gate Valve | Bronze
Specifications for Variant SKU: DBGV150 Dixon
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female NPT, 1-1/2in Female NPT, Some Ends Match
Material(s): Bronze
Features:
  • Class 150.
  • Union bonnet.
  • ASME B1.20.1.
  • Grafoil® packing.
  • Rising stem.
  • Solid disc.
Materials:
  • Bronze.
  • Malleable iron handwheel.
Specifications:
  • Temperature range: -20°F to 406°F (-29°C to 208°C).
  • Pressure rating: 300 PSI cold working pressure.
    150 PSI steam working pressure.
Approvals:
  • 100% factory tested.
Part Number Female NPT x Female NPT
DBGV50 1/2"
DBGV75 3/4"
DBGV100 1"
DBGV125 1-1/4"
DBGV150 1-1/2"
DBGV200 2"
