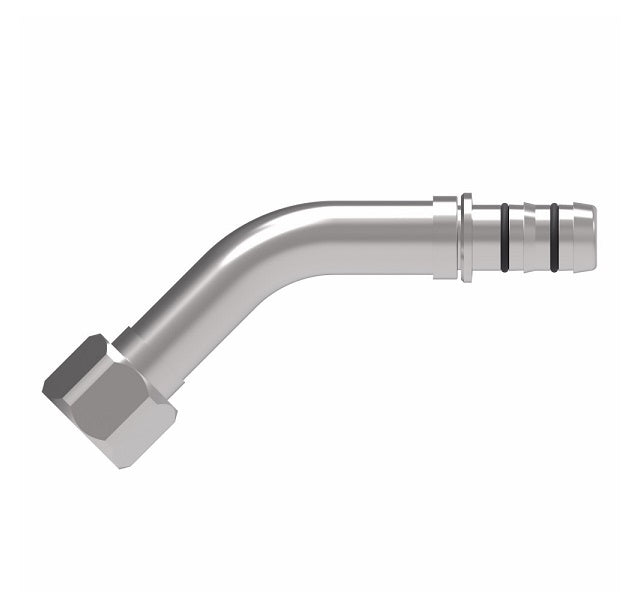

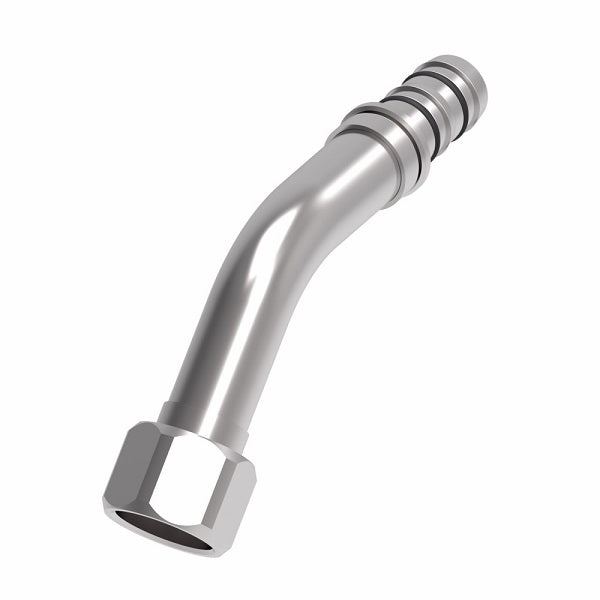

EJ3534-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel
EJ3534-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel
EJ3534-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel
EJ3534-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel

EJ3534-07-1616S E-Z Clip System by Danfoss | Female JIC 37° Flare 45° Elbow | A/C Refrigeration Fitting | -16 Female JIC 37° Flare x -16 Hose Barb | Steel

$75.78 - $75.78
$75.78
$75.78 - $75.78
$75.78

Danfoss A/C & Refrigeration
E-Z Clip System - Female JIC 37° Flare - 45° Elbow

Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: EJ3534-07-1616S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)
EJ3534-02-0606S 9/16-18 -06 3.31" 1.79" 0.74" 1.00" FF14171
EJ3534-04-0808S 3/4-16 -08 4.04" 2.49" 1.10" 0.88" FF14172
EJ3534-06-1212S 1-1/16-12 -12 4.30" 2.73" 1.33" 1.50" FF14174
EJ3534-07-1616S 1-5/16-12 -16 5.46" 3.79" 1.92" 1.50" FF14401
