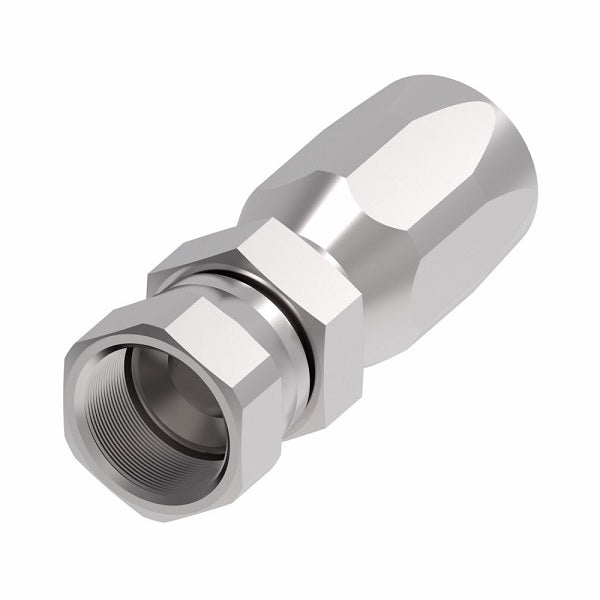

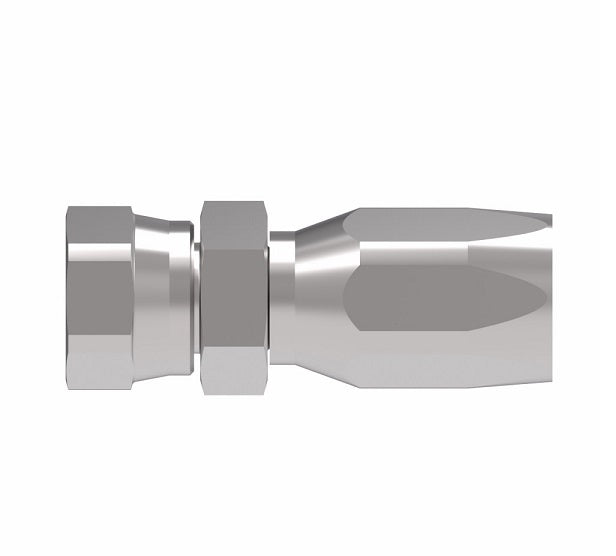

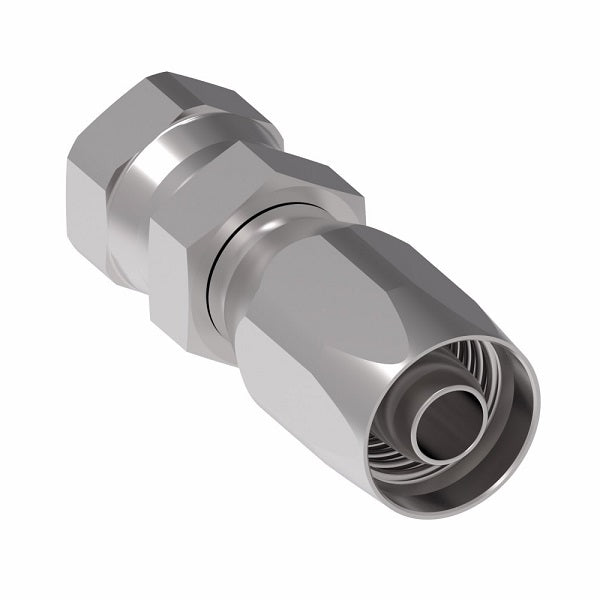

FC5130-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5130-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5130-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
FC5130-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

FC5130-1212S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

$66.31 - $66.31
$66.31
$66.31 - $66.31
$66.31

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC5130-1212S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Female JIC, 3/4in Reusable Hose End
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: FC310 Series  |   FC510 Series
Technical Info:
Steel
Part Number 		Hose Size Thread A D EØ
FC5130-0404S -04 7/16-20 2.60" 1.38" 0.17"
FC5130-0604S -04 9/16-18 2.70" - -
FC5130-0606S -06 9/16-18 2.98" 1.51" 0.31"
FC5130-0806S -06 3/4-16 3.11" 1.64" 0.31"
FC5130-0808S -08 3/4-16 3.20" 1.61" 0.39"
FC5130-1008S -08 7/8-14 3.31" 1.80" 0.39"
FC5130-1010S -10 7/8-14 3.44" 1.83" 0.50"
FC5130-1212S -12 1-1/16-12 3.86" 1.99" 0.61"
FC5130-1616S -16 1-5/16-12 4.48" 2.37" 0.82"

* FC310 only
