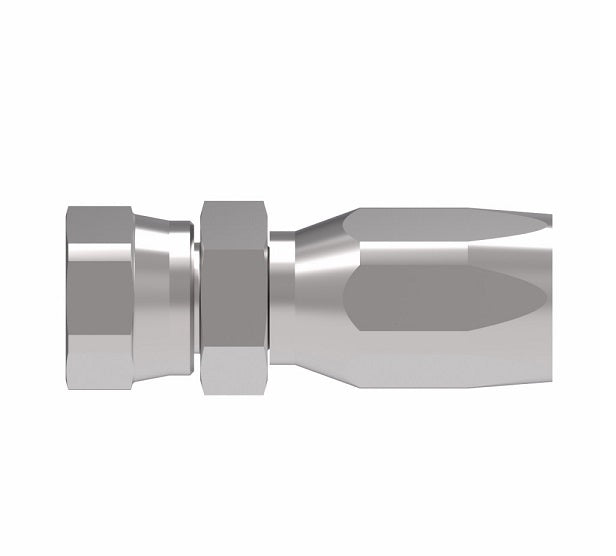

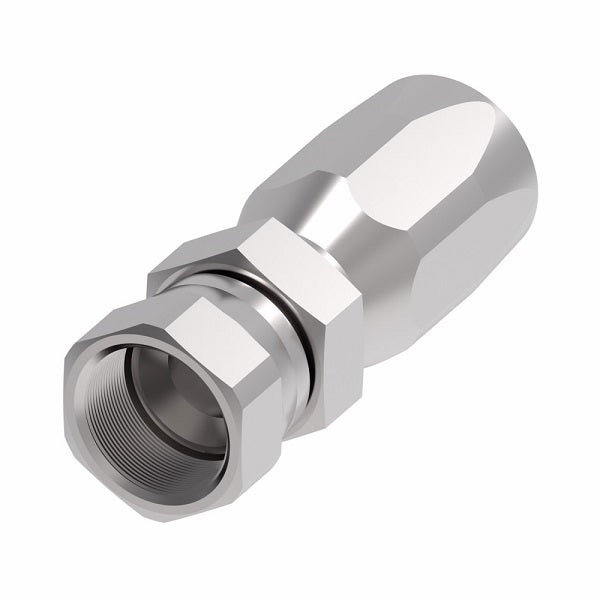

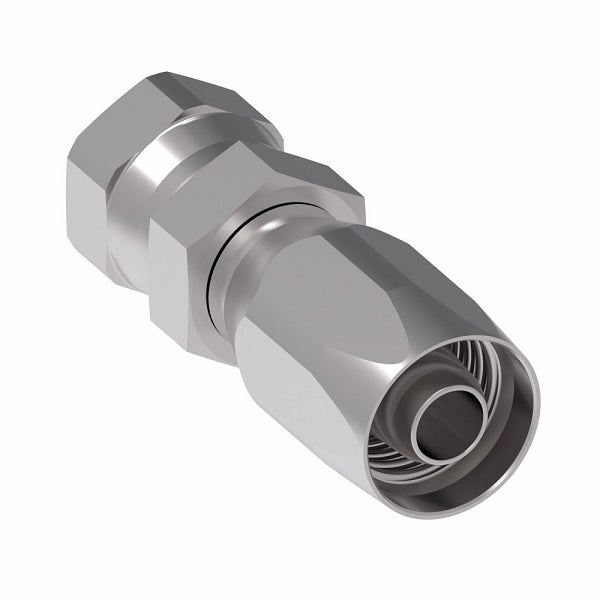

FC5130-1010S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel

FC5130-1010S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -10 Female 37° JIC Swivel x -10 Reusable Hose End | Steel | Pack of 10

Minimum Order Quantity: 10 Units

$611.40 - $611.40

$611.40

$611.40 - $611.40

$611.40

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC5130-1010S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	5/8in Female JIC, 5/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC310 Series \| FC510 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5130-0404S	-04	7/16-20	2.60"	1.38"	0.17"
FC5130-0604S	-04	9/16-18	2.70"	-	-
FC5130-0606S	-06	9/16-18	2.98"	1.51"	0.31"
FC5130-0806S	-06	3/4-16	3.11"	1.64"	0.31"
FC5130-0808S	-08	3/4-16	3.20"	1.61"	0.39"
FC5130-1008S	-08	7/8-14	3.31"	1.80"	0.39"
FC5130-1010S	-10	7/8-14	3.44"	1.83"	0.50"
FC5130-1212S	-12	1-1/16-12	3.86"	1.99"	0.61"
FC5130-1616S	-16	1-5/16-12	4.48"	2.37"	0.82"

* FC310 only
