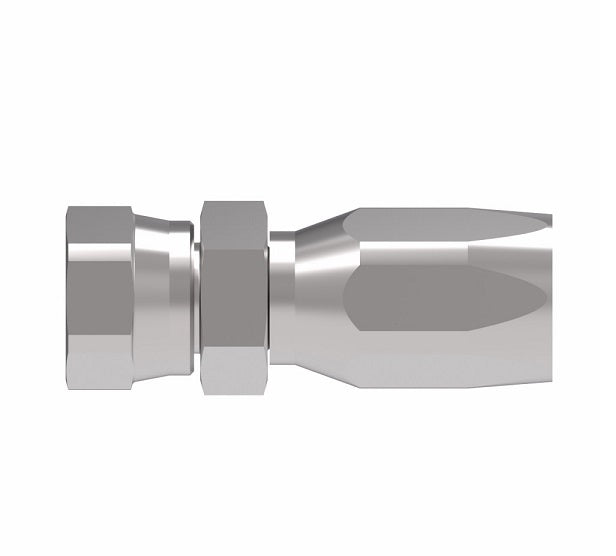

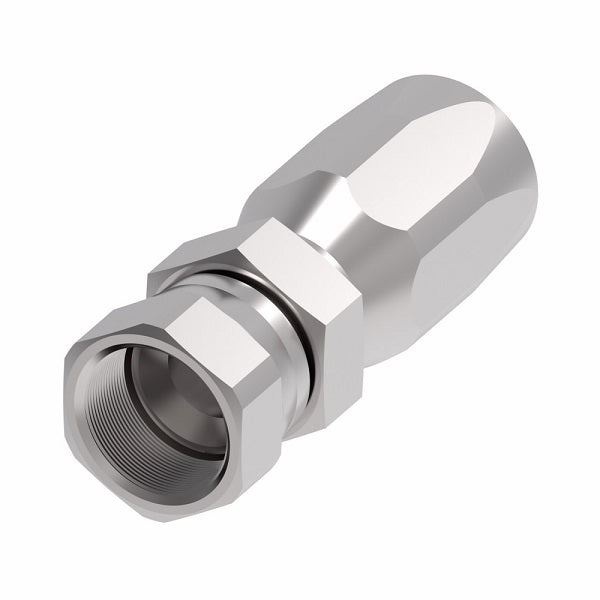

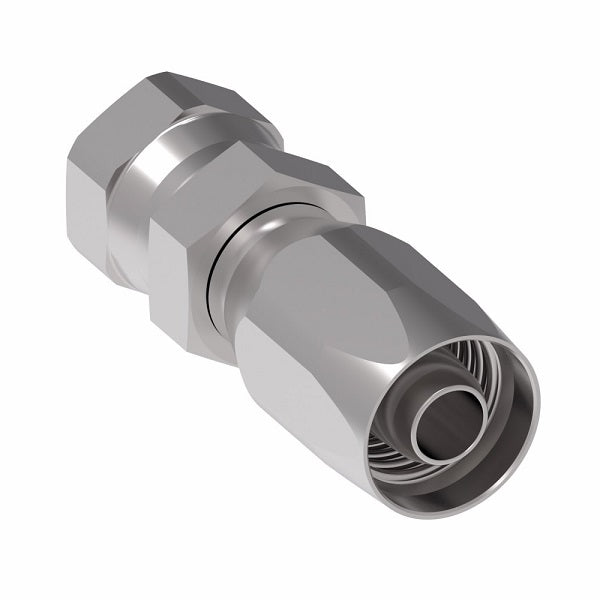

FC5130-0806S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -06 Reusable Hose End | Steel

FC5130-0806S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Female 37° JIC Swivel x -06 Reusable Hose End | Steel | Pack of 10

$675.22 - $675.22

$675.22

$675.22 - $675.22

$675.22

Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - Straight

(Formerly Eaton Aeroquip)

Package Quantity: 10 Units

Specifications for Variant SKU: FC5130-0806S Danfoss \| 10 \|
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female JIC, 3/8in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	FC310 Series \| FC510 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	EØ
FC5130-0404S	-04	7/16-20	2.60"	1.38"	0.17"
FC5130-0604S	-04	9/16-18	2.70"	-	-
FC5130-0606S	-06	9/16-18	2.98"	1.51"	0.31"
FC5130-0806S	-06	3/4-16	3.11"	1.64"	0.31"
FC5130-0808S	-08	3/4-16	3.20"	1.61"	0.39"
FC5130-1008S	-08	7/8-14	3.31"	1.80"	0.39"
FC5130-1010S	-10	7/8-14	3.44"	1.83"	0.50"
FC5130-1212S	-12	1-1/16-12	3.86"	1.99"	0.61"
FC5130-1616S	-16	1-5/16-12	4.48"	2.37"	0.82"

* FC310 only

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
