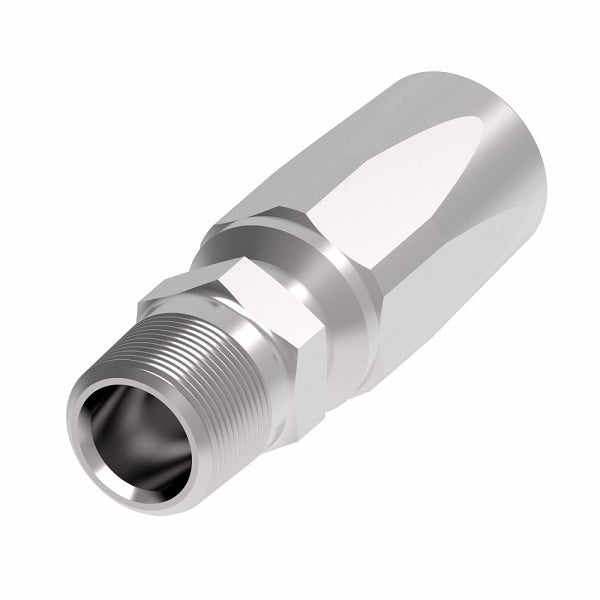

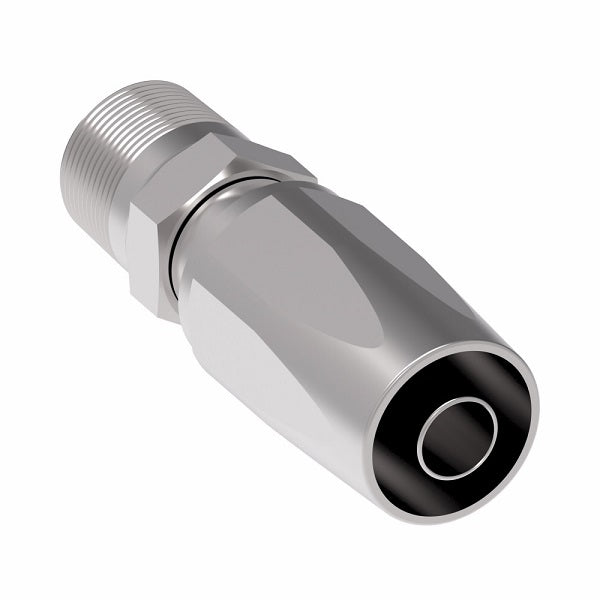

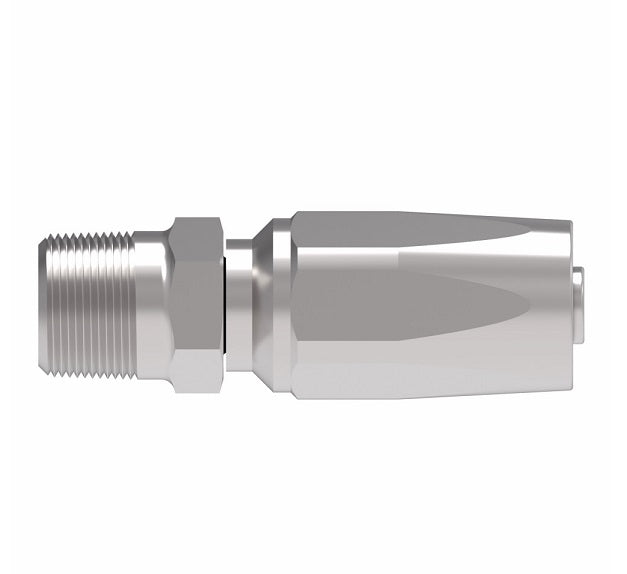

FC7985-0606S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0606S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0606S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0606S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel

FC7985-0606S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -06 Male Pipe x -06 Reusable Hose End | Steel

$23.18 - $23.18
$23.18
$23.18 - $23.18
$23.18

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7985-0606S Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPT, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
FC7985-0404S -04 1/4-18 2.36" 1.32" 0.17"
FC7985-0406S -06 1/4-18 2.68" 1.55" 0.30"
FC7985-0606S -06 3/8-18 2.68" 1.55" 0.31"
FJ9709-0608S -08 3/8-18 2.82" 1.35" 0.39"
FC7985-0808S -08 1/2-14 3.07" 1.60" 0.39"
FC7985-1212S -12 3/4-14 3.55" 1.95" 0.61"
FC7985-1616S -16 1-11-1/2 4.25" 2.13" 0.82"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
