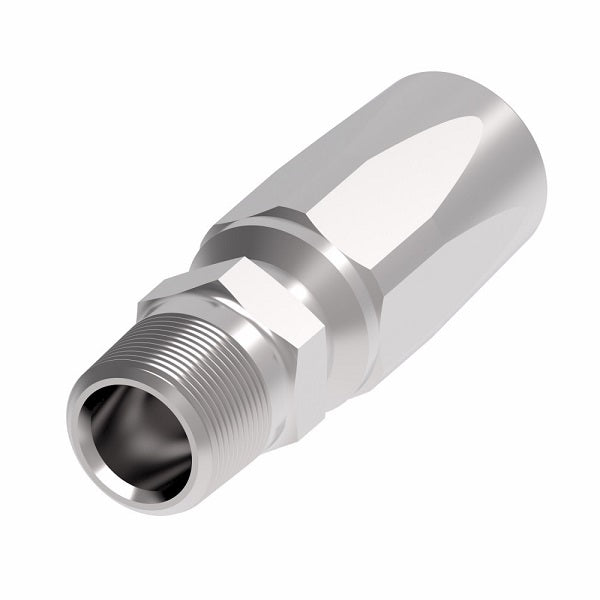

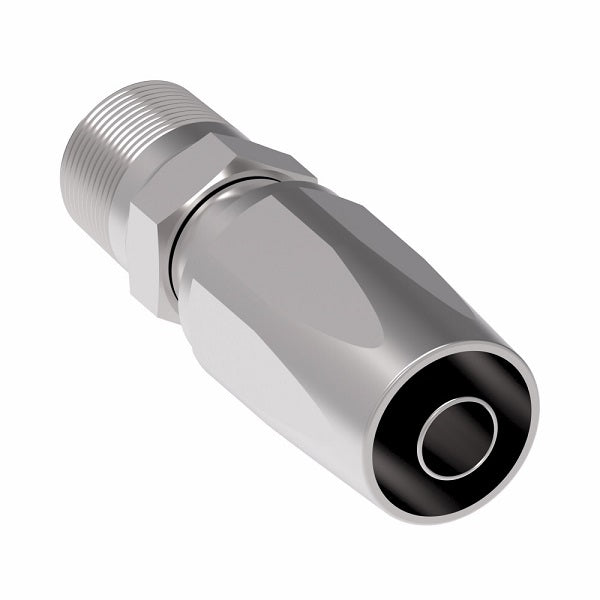

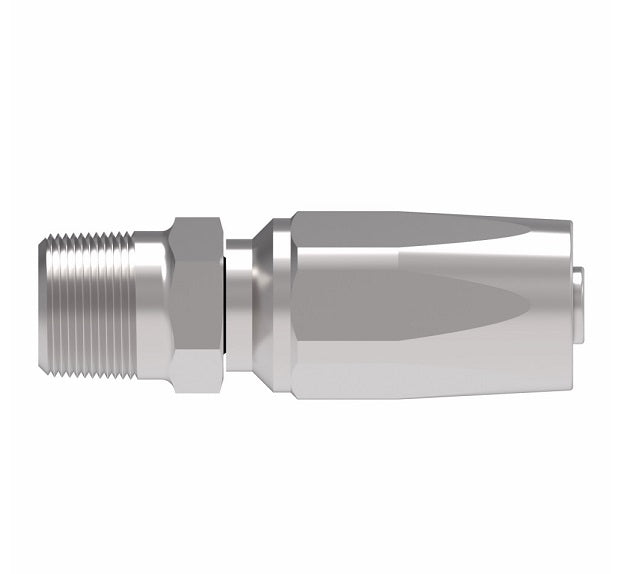

FC7985-0808S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

FC7985-0808S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel

Name: FC7985-0808S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -08 Male Pipe x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FC7985-0808S Danfoss
Price: 28.35 USD
Availability: InStock

$28.35 - $28.35

$28.35

$28.35 - $28.35

$28.35

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC7985-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPT, 1/2in Reusable Hose End
Material(s):	Steel
Compatible with the following Series:	GH663 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FC7985-0404S	-04	1/4-18	2.36"	1.32"	0.17"
FC7985-0406S	-06	1/4-18	2.68"	1.55"	0.30"
FC7985-0606S	-06	3/8-18	2.68"	1.55"	0.31"
FJ9709-0608S	-08	3/8-18	2.82"	1.35"	0.39"
FC7985-0808S	-08	1/2-14	3.07"	1.60"	0.39"
FC7985-1212S	-12	3/4-14	3.55"	1.95"	0.61"
FC7985-1616S	-16	1-11-1/2	4.25"	2.13"	0.82"
