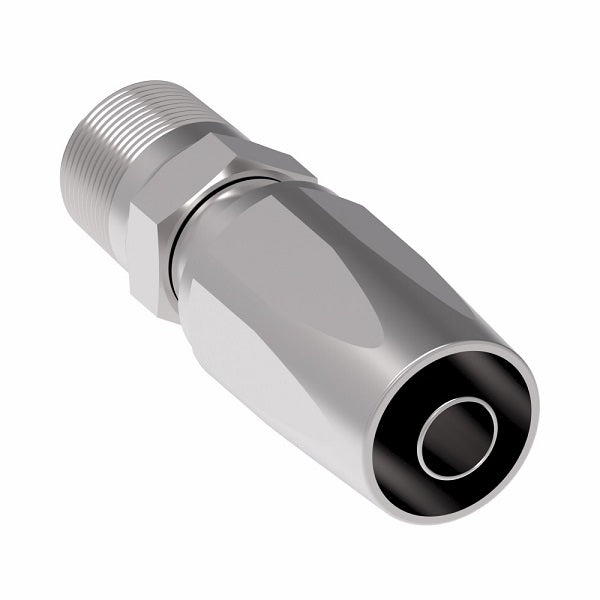

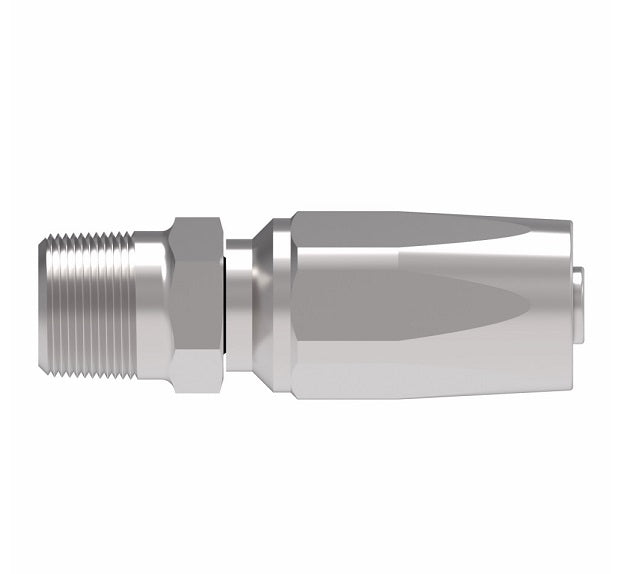

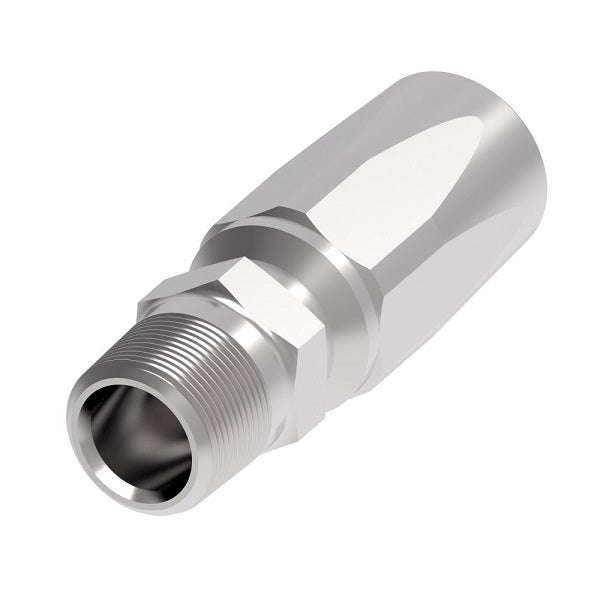

FC7985-0406S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0406S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0406S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Male Pipe x -06 Reusable Hose End | Steel
FC7985-0406S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Male Pipe x -06 Reusable Hose End | Steel

FC7985-0406S Aeroquip by Danfoss | 1 Wire TTC Male Pipe 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Male Pipe x -06 Reusable Hose End | Steel

$100.40 - $100.40
$100.40
$100.40 - $100.40
$100.40

Aeroquip® by Danfoss
1 Wire TTC 100R1 Style Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Male Pipe - Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7985-0406S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: GH663 Series
Technical Info:
Note:
  • Fittings are compatible with Danfoss GH663 Hose, ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
FC7985-0404S -04 1/4-18 2.36" 1.32" 0.17"
FC7985-0406S -06 1/4-18 2.68" 1.55" 0.30"
FC7985-0606S -06 3/8-18 2.68" 1.55" 0.31"
FJ9709-0608S -08 3/8-18 2.82" 1.35" 0.39"
FC7985-0808S -08 1/2-14 3.07" 1.60" 0.39"
FC7985-1212S -12 3/4-14 3.55" 1.95" 0.61"
FC7985-1616S -16 1-11-1/2 4.25" 2.13" 0.82"
