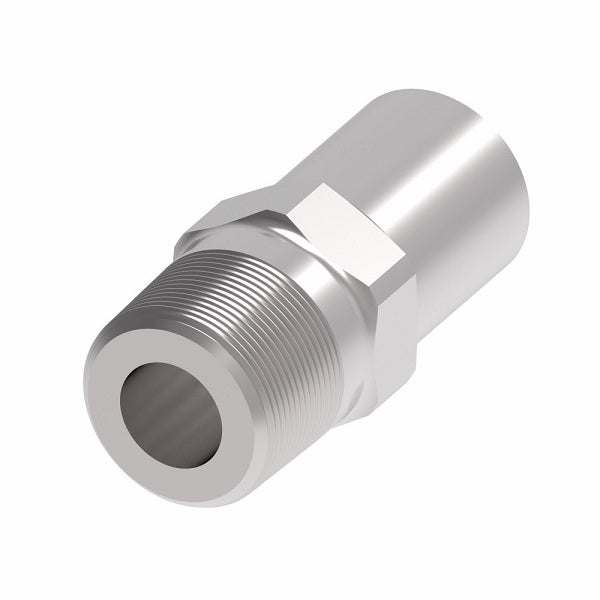

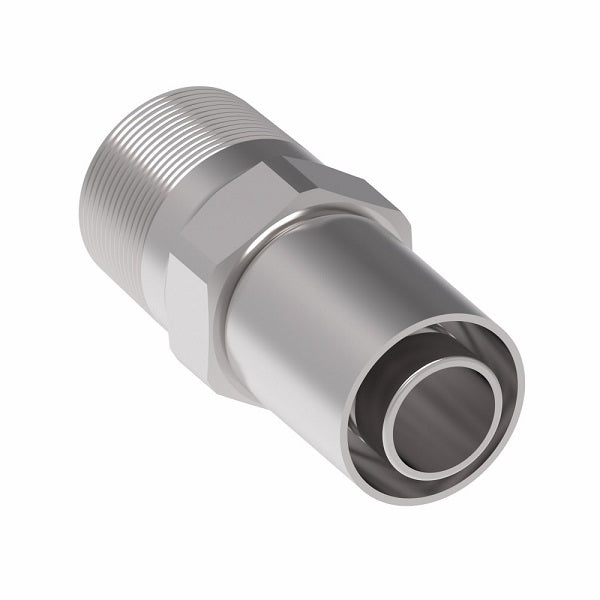

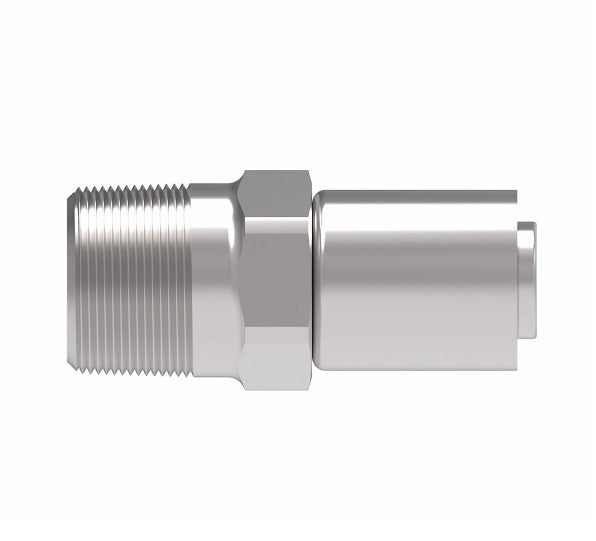

FC9846-1212-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Male Pipe x -12 Hose Barb | Stainless Steel
FC9846-1212-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Male Pipe x -12 Hose Barb | Stainless Steel
FC9846-1212-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Male Pipe x -12 Hose Barb | Stainless Steel
FC9846-1212-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Male Pipe x -12 Hose Barb | Stainless Steel

FC9846-1212-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Male Pipe x -12 Hose Barb | Stainless Steel

$74.88 - $74.88
$74.88
$74.88 - $74.88
$74.88

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC9846-1212-333 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/4in Male NPT, 3/4in Hose Barb
Material(s): Stainless Steel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 2
- - FC3596-04C 1/8-27 -04 1.25" 0.66" 0.12" 7/16"
FC9846-0404-333 FC3680-0404-329 FC3596-04C 1/4-18 -04 1.50" 0.91" 0.12" 9/16"
- - FC3443-04C 1/4-18 -05 1.40" 0.91" 0.19" 9/16"
FC9846-0406-333 FC3680-0406-329 FC3443-05C 1/4-18 -06 1.40" 0.91" 0.25" 9/16"
FC9846-0606-333 FC3680-0606-329 FC3443-05C 3/8-18 -06 1.40" 0.91" 0.25" 11/16"
- - FC3596-08C 3/8-18 -08 1.80" 0.91" 0.34" 11/16"
- FC3680-0810-329 FC3443-08C 1-1/2-14 -10 2.04" 1.16" 0.44" 7/8"
FC9846-1212-333 FC3680-1212-329 FC3596-12C 3/4-14 -12 2.04" 1.16" 0.56" 1-1/16"
FC9846-1616-333 FC3680-1616-329 FC3596-16C 1-11-1/2 -16 2.32" 1.44" 0.80" 1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
