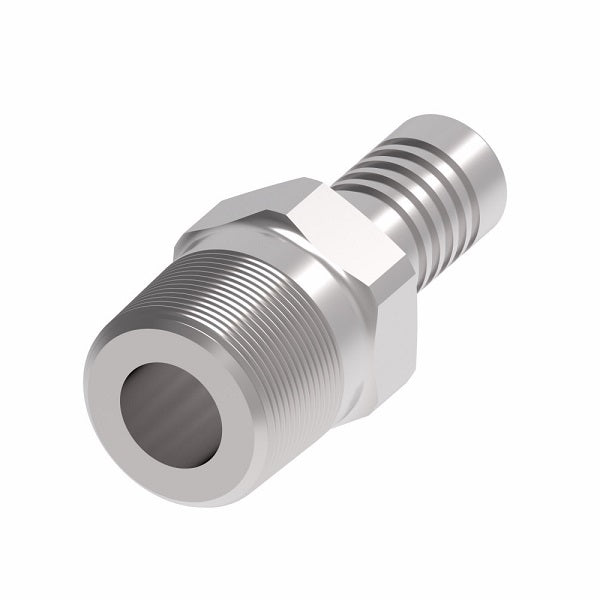

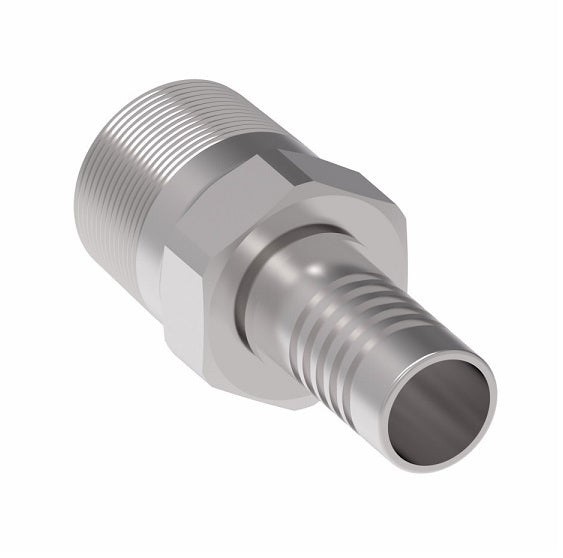

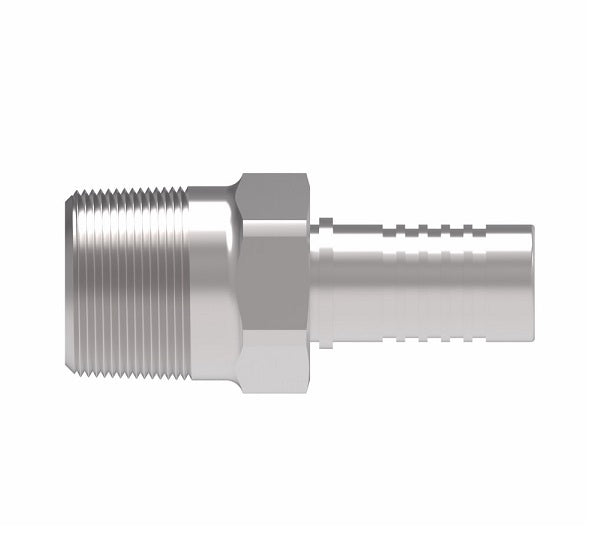

FC3680-0406-329 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -06 Hose Barb | Stainless Steel
FC3680-0406-329 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -06 Hose Barb | Stainless Steel
FC3680-0406-329 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -06 Hose Barb | Stainless Steel
FC3680-0406-329 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -06 Hose Barb | Stainless Steel

FC3680-0406-329 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Nipple Assembly | -04 Male Pipe x -06 Hose Barb | Stainless Steel

$75.07 - $75.07
$75.07
$75.07 - $75.07
$75.07

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC3680-0406-329 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPT, 3/8in Hose Barb
Material(s): Stainless Steel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 2
- - FC3596-04C 1/8-27 -04 1.25" 0.66" 0.12" 7/16"
FC9846-0404-333 FC3680-0404-329 FC3596-04C 1/4-18 -04 1.50" 0.91" 0.12" 9/16"
- - FC3443-04C 1/4-18 -05 1.40" 0.91" 0.19" 9/16"
FC9846-0406-333 FC3680-0406-329 FC3443-05C 1/4-18 -06 1.40" 0.91" 0.25" 9/16"
FC9846-0606-333 FC3680-0606-329 FC3443-05C 3/8-18 -06 1.40" 0.91" 0.25" 11/16"
- - FC3596-08C 3/8-18 -08 1.80" 0.91" 0.34" 11/16"
- FC3680-0810-329 FC3443-08C 1-1/2-14 -10 2.04" 1.16" 0.44" 7/8"
FC9846-1212-333 FC3680-1212-329 FC3596-12C 3/4-14 -12 2.04" 1.16" 0.56" 1-1/16"
FC9846-1616-333 FC3680-1616-329 FC3596-16C 1-11-1/2 -16 2.32" 1.44" 0.80" 1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
