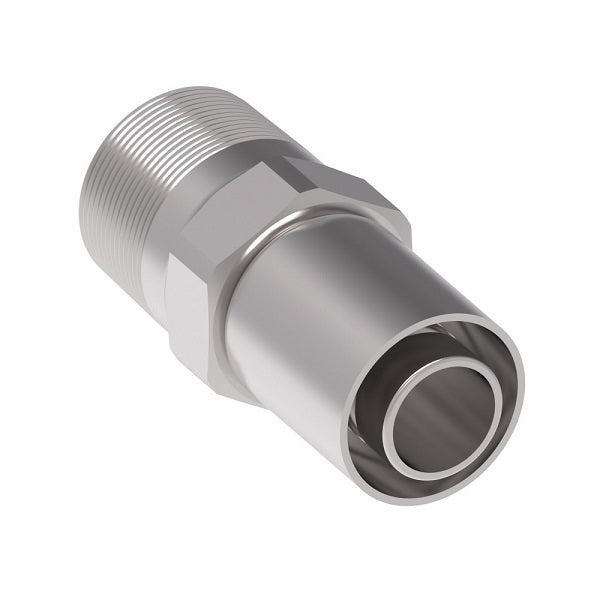

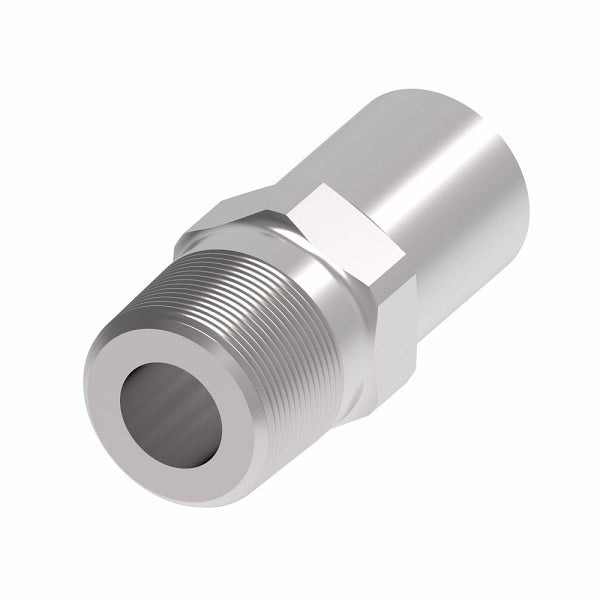

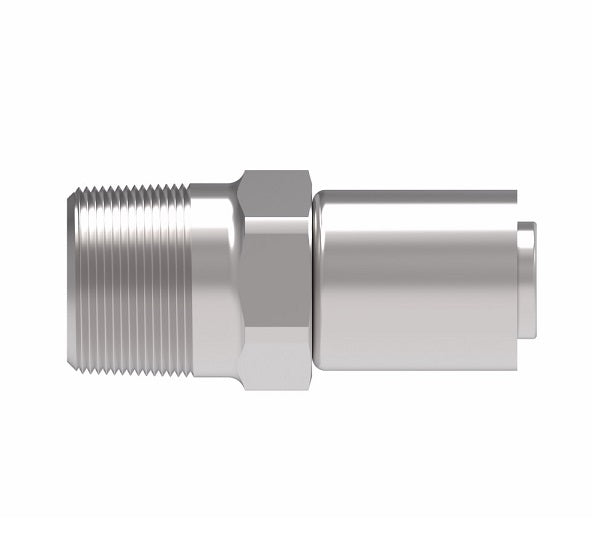

Name: FC9846-0404-333 Aeroquip by Danfoss | Male Pipe PTFE Crimp Fitting | FC Series | Complete Fitting | -04 Male Pipe x -04 Hose Barb | Stainless Steel
Brand: Danfoss/Eaton
SKU: FC9846-0404-333 Danfoss
Price: 46.65 USD
Availability: InStock

$46.65 - $46.65

$46.65

$46.65 - $46.65

$46.65

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Male Pipe - Straight - Stainless Steel

FC Series

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FC9846-0404-333 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male NPT, 1/4in Hose Barb
Material(s):	Stainless Steel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 2
-	-	FC3596-04C	1/8-27	-04	1.25"	0.66"	0.12"	7/16"
FC9846-0404-333	FC3680-0404-329	FC3596-04C	1/4-18	-04	1.50"	0.91"	0.12"	9/16"
-	-	FC3443-04C	1/4-18	-05	1.40"	0.91"	0.19"	9/16"
FC9846-0406-333	FC3680-0406-329	FC3443-05C	1/4-18	-06	1.40"	0.91"	0.25"	9/16"
FC9846-0606-333	FC3680-0606-329	FC3443-05C	3/8-18	-06	1.40"	0.91"	0.25"	11/16"
-	-	FC3596-08C	3/8-18	-08	1.80"	0.91"	0.34"	11/16"
-	FC3680-0810-329	FC3443-08C	1-1/2-14	-10	2.04"	1.16"	0.44"	7/8"
FC9846-1212-333	FC3680-1212-329	FC3596-12C	3/4-14	-12	2.04"	1.16"	0.56"	1-1/16"
FC9846-1616-333	FC3680-1616-329	FC3596-16C	1-11-1/2	-16	2.32"	1.44"	0.80"	1-3/8"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
