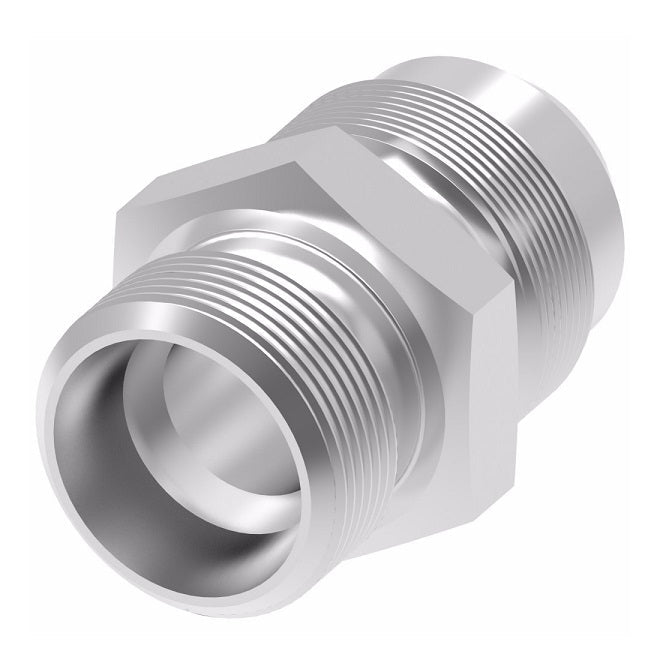

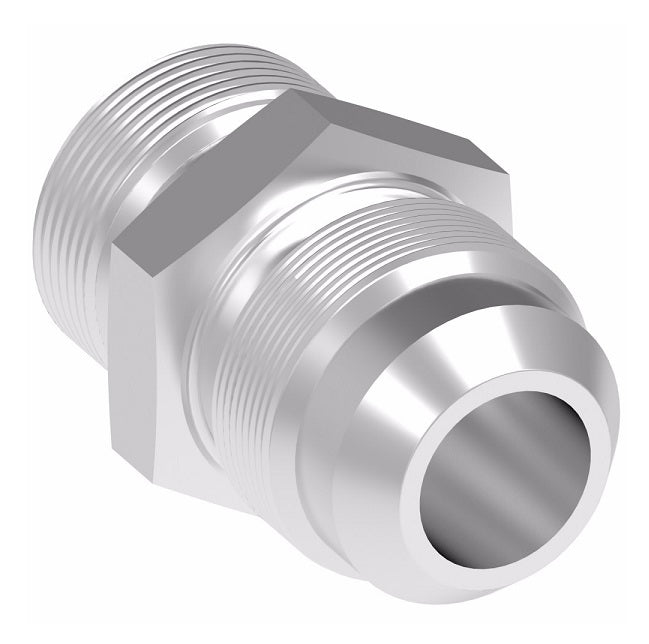

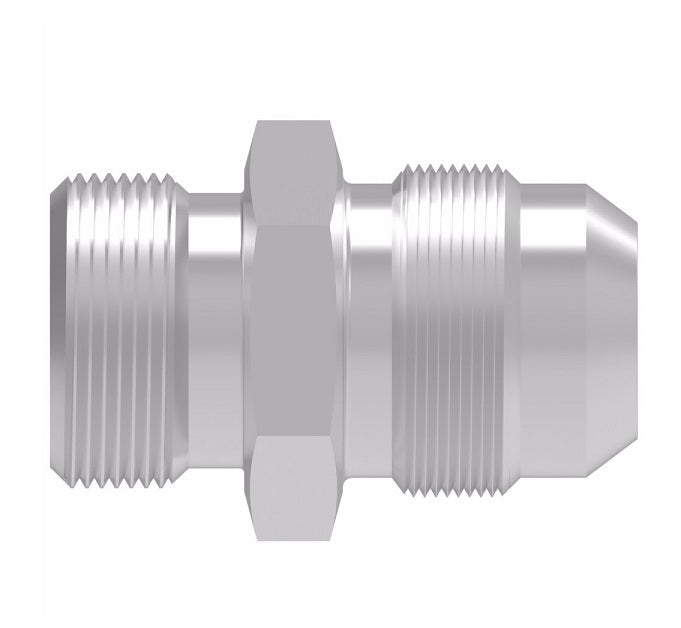

FF1315-1008S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -10 Male SAE Flareless x -08 Male 37° JIC Flare | Steel

FF1315-1008S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -10 Male SAE Flareless x -08 Male 37° JIC Flare | Steel

Name: FF1315-1008S Aeroquip by Danfoss | Male SAE Flareless/37° JIC Flare Adapter | -10 Male SAE Flareless x -08 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: FF1315-1008S Danfoss
Price: 118.68 USD
Availability: InStock

$118.68 - $118.68

$118.68

$118.68 - $118.68

$118.68

Aeroquip® by Danfoss
Male SAE Flareless/37° JIC Flare Adapter
Male SAE Flareless x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1315-1008S Danfoss
Shape (Orientation):	Straight
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
FF1315-0404S	0.25"	7/16-20	7/16-20	1.22"	0.50"
FF1315-0604S	0.38"	9/16-18	7/16-20	1.27"	0.62"
FF1315-0606S	0.38"	9/16-18	9/16-18	1.28"	0.62"
FF1315-0806S	0.50"	3/4-16	9/16-18	1.37"	0.81"
FF1315-0808S	0.50"	3/4-16	3/4-16	1.47"	0.81"
FF1315-1008S	0.63"	7/8-14	3/4-16	1.59"	0.94"
FF1315-1010S	0.63"	7/8-14	7/8-14	1.69"	0.94"
FF1315-1212S	0.75"	1-1/16-12	1-1/16-12	1.93"	1.12"
FF1315-1616S	1.00"	1-5/16-12	1-5/16-12	1.98"	1.38"
