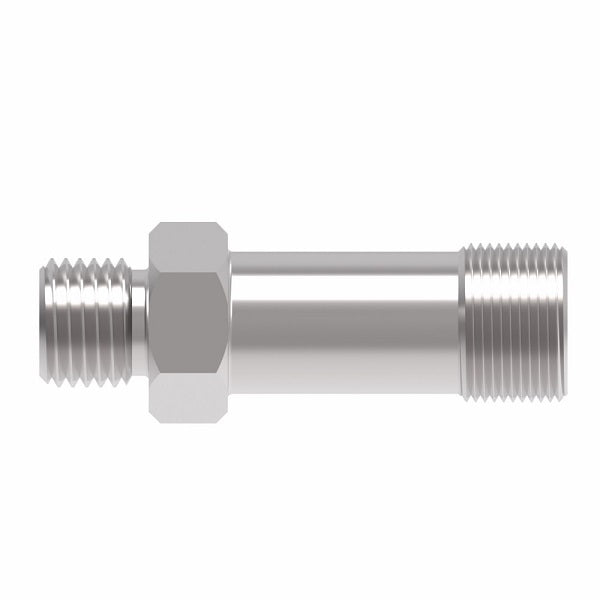

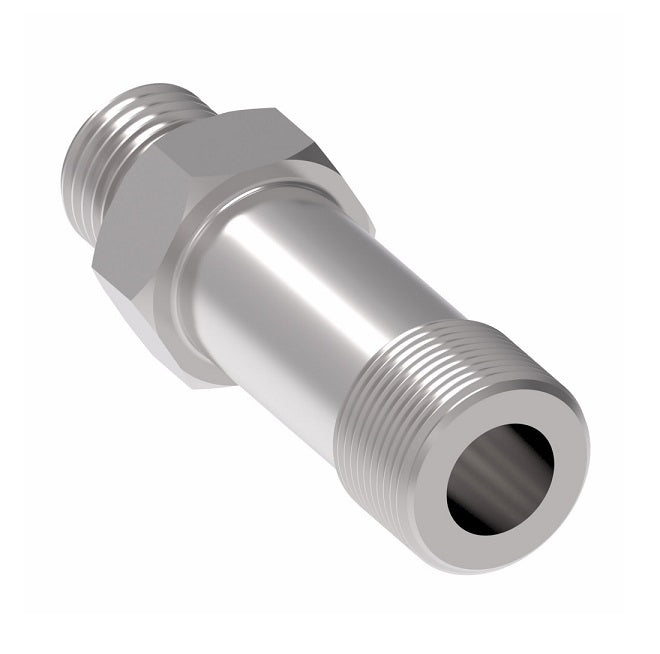

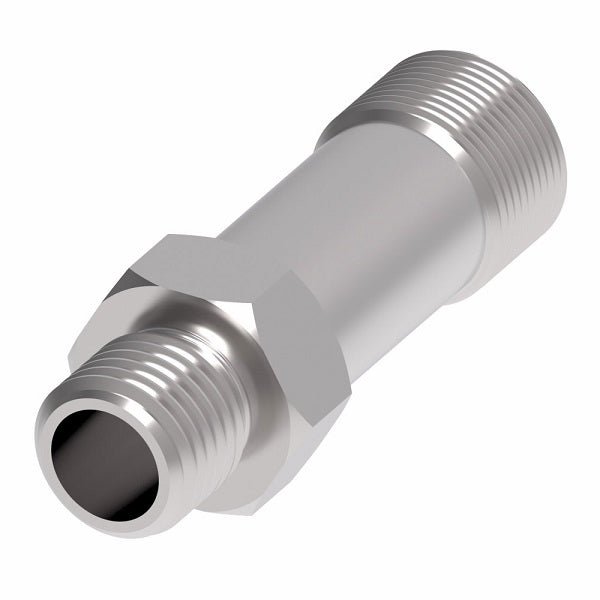

FF1854T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

FF1854T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel

Name: FF1854T1212S Aeroquip by Danfoss | ORS/SAE O-Ring Boss Long Adapter | -12 Male O-Ring Face Seal x -12 Male SAE O-Ring Boss | Steel
Brand: Danfoss/Eaton
SKU: FF1854T1212S Danfoss
Price: 43.38 USD
Availability: InStock

$43.38 - $43.38

$43.38

$43.38 - $43.38

$43.38

Aeroquip® by Danfoss
ORS/SAE O-Ring Boss Long Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FF1854T1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male O-Ring Face Seal, 3/4in Male O-Ring Boss
Material(s):	Steel

Specifications:
Ref. SAE 520122
Construction:
Buna-N O-Rings are standard.


Steel Part Number	Tube OD	Thread T1	Thread T2	A	C	Hex 1
FF1854T0404S	0.25"	9/16-18	7/16-20	2.07"	0.43"	0.62"
FF1854T0606S	0.38"	11/16-16	9/16-18	2.27"	0.47"	0.75"
FF1854T0808S	0.50"	13/16-16	3/4-16	2.67"	0.55"	0.88"
FF1854T1010S	0.63"	1-14	7/8-14	3.13"	0.63"	1.06"
FF1854T1212S	0.75"	1-3/16-12	1-1/16-12	3.75"	0.73"	1.25"
FF1854T1616S	1.00"	1-7/16-12	1-5/16-12	4.13"	0.73"	1.50"
FF1854T2424S	1.50"	2-12	1-7/8-12	5.26"	0.73"	2.12"
