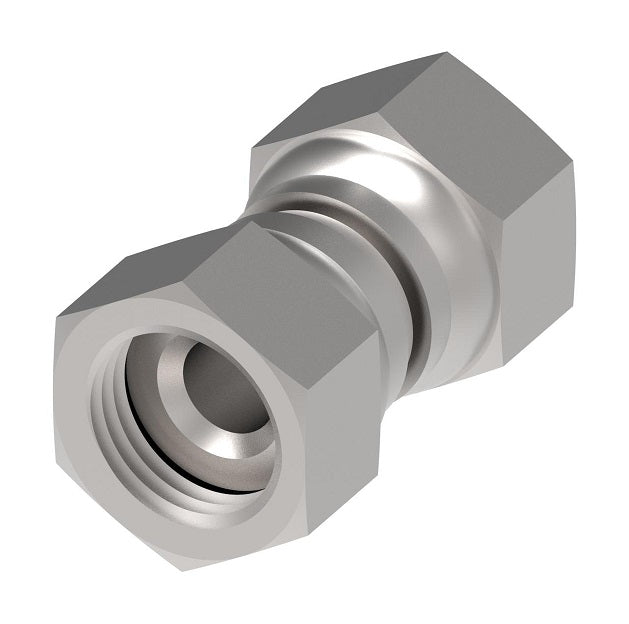

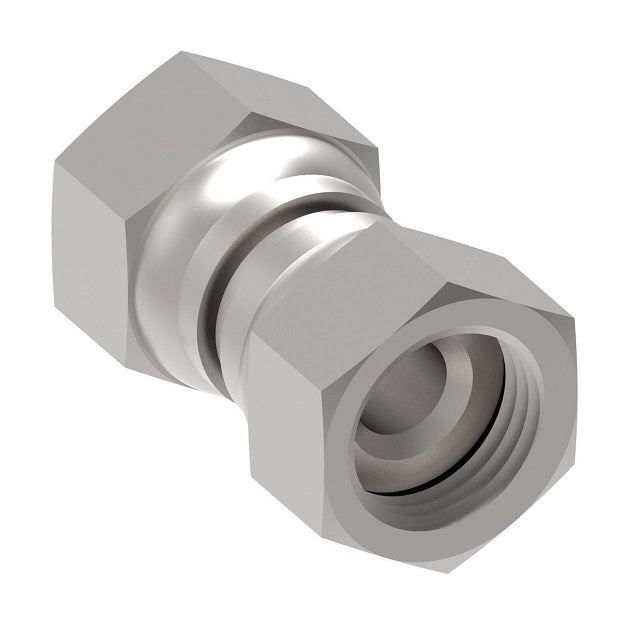

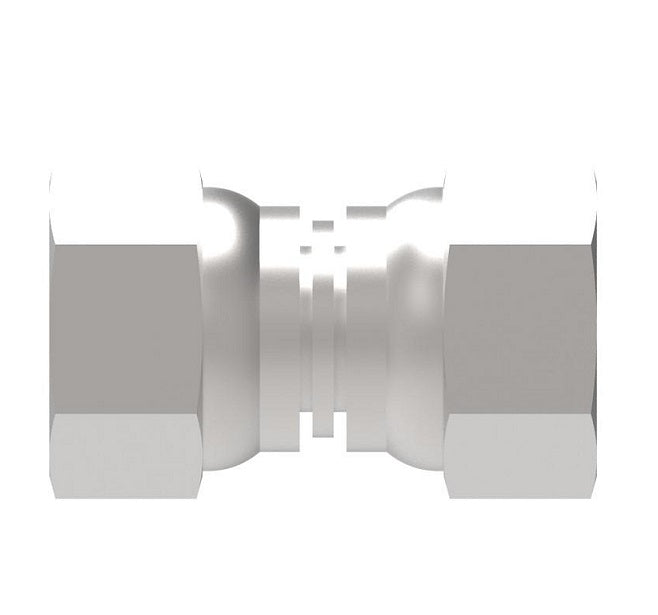

FF4285-0404S Aeroquip by Danfoss | JIC/JIC Adapter | -04 Female JIC x -04 Female JIC | Carbon Steel
FF4285-0404S Aeroquip by Danfoss | JIC/JIC Adapter | -04 Female JIC x -04 Female JIC | Carbon Steel
FF4285-0404S Aeroquip by Danfoss | JIC/JIC Adapter | -04 Female JIC x -04 Female JIC | Carbon Steel
FF4285-0404S Aeroquip by Danfoss | JIC/JIC Adapter | -04 Female JIC x -04 Female JIC | Carbon Steel

FF4285-0404S Aeroquip by Danfoss | JIC/JIC Adapter | -04 Female JIC x -04 Female JIC | Carbon Steel

$1.92 - $1.92
$1.92
$1.92 - $1.92
$1.92

Aeroquip® by Danfoss
JIC 74°/ JIC 74° Adapter
Female JIC 74° x Female JIC 74°
Straight

Formerly Weatherhead series C5325x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4285-0404S Danfoss
Brand: Aeroquip
Ends Configuration: 1/4in Female JIC, 1/4in Female JIC, Some Ends Match
Material(s): Carbon Steel
Specifications:
  • ISO 8434-2
Steel
Part Number 		Tube OD Thread T1 Thread T2 A
FF4285-0404S 0.25" G 1/4-19 G 1/4-19 0.98"
FF4285-0606S 0.38" G 3/8-19 G 3/8-19 1.06"
FF4285-0808S 0.50" G 1/2-14 G 1/2-14 1.22"
FF4285-1010S - - - -
FF4285-1212S 0.75" G 3/4-14 G 3/4-14 1.32"
FF4285-1616S 1.00" G 1-11 G 1-11 1.44"
FF4285-2020S - - - -
FF4285-2424S 1.50" G 1-1/2-11 G 1-1/2-11 1.65"
FF4285-3232S 2.00" G 2-11 G 2-11 1.85"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
