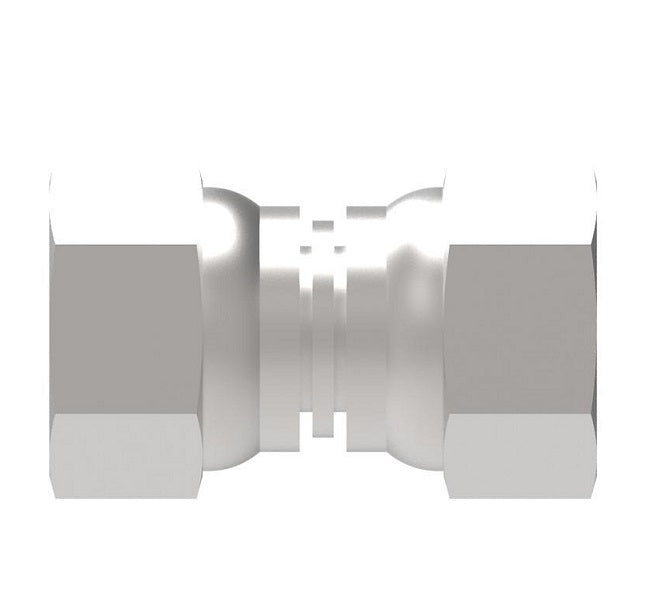

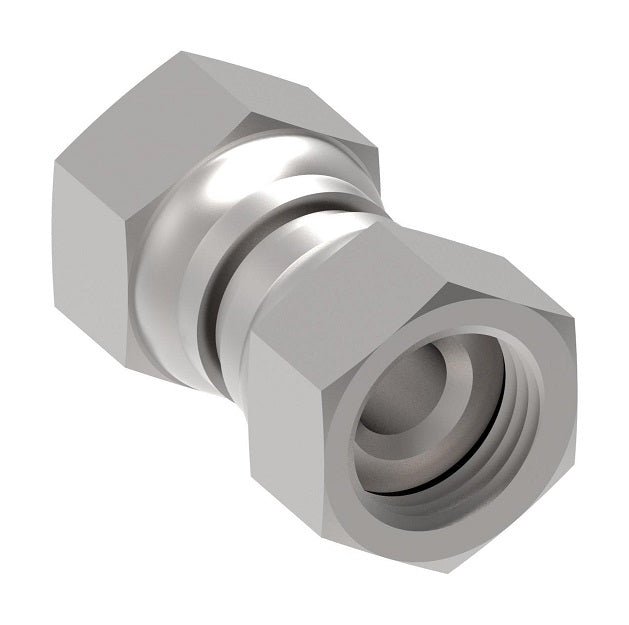

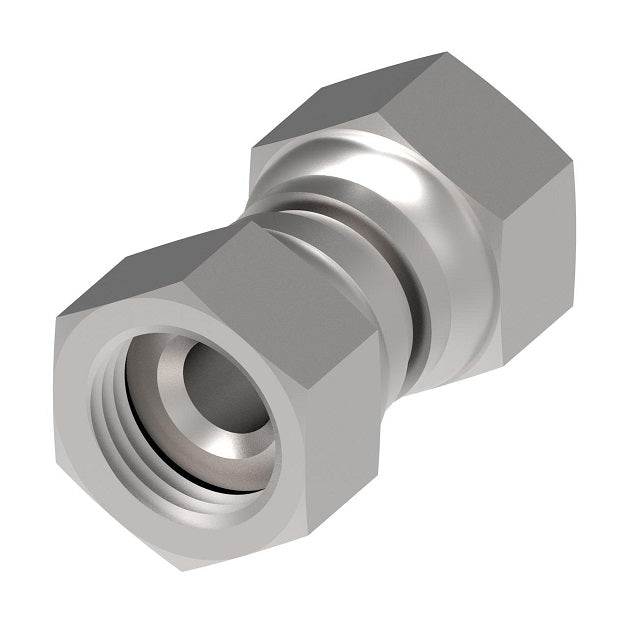

FF4285-0808S Aeroquip by Danfoss | JIC/JIC Adapter | -08 Female JIC x -08 Female JIC | Carbon Steel
FF4285-0808S Aeroquip by Danfoss | JIC/JIC Adapter | -08 Female JIC x -08 Female JIC | Carbon Steel
FF4285-0808S Aeroquip by Danfoss | JIC/JIC Adapter | -08 Female JIC x -08 Female JIC | Carbon Steel
FF4285-0808S Aeroquip by Danfoss | JIC/JIC Adapter | -08 Female JIC x -08 Female JIC | Carbon Steel

FF4285-0808S Aeroquip by Danfoss | JIC/JIC Adapter | -08 Female JIC x -08 Female JIC | Carbon Steel

$2.38 - $2.38
$2.38
$2.38 - $2.38
$2.38

Aeroquip® by Danfoss
JIC 74°/ JIC 74° Adapter
Female JIC 74° x Female JIC 74°
Straight

Formerly Weatherhead series C5325x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF4285-0808S Danfoss
Brand: Aeroquip
Ends Configuration: 1/2in Female JIC, 1/2in Female JIC, Some Ends Match
Material(s): Carbon Steel
Specifications:
  • ISO 8434-2
Steel
Part Number 		Tube OD Thread T1 Thread T2 A
FF4285-0404S 0.25" G 1/4-19 G 1/4-19 0.98"
FF4285-0606S 0.38" G 3/8-19 G 3/8-19 1.06"
FF4285-0808S 0.50" G 1/2-14 G 1/2-14 1.22"
FF4285-1010S - - - -
FF4285-1212S 0.75" G 3/4-14 G 3/4-14 1.32"
FF4285-1616S 1.00" G 1-11 G 1-11 1.44"
FF4285-2020S - - - -
FF4285-2424S 1.50" G 1-1/2-11 G 1-1/2-11 1.65"
FF4285-3232S 2.00" G 2-11 G 2-11 1.85"
