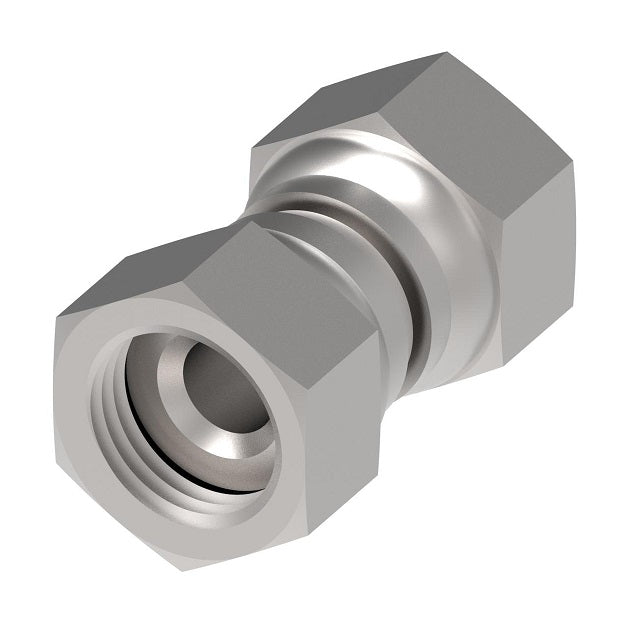

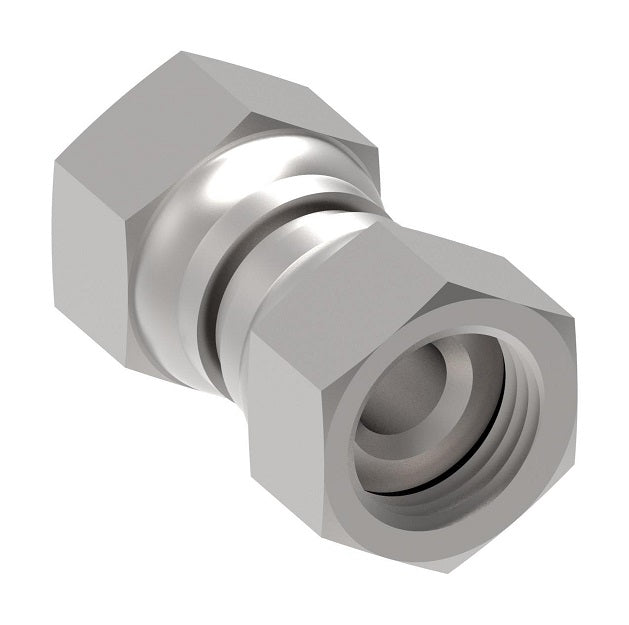

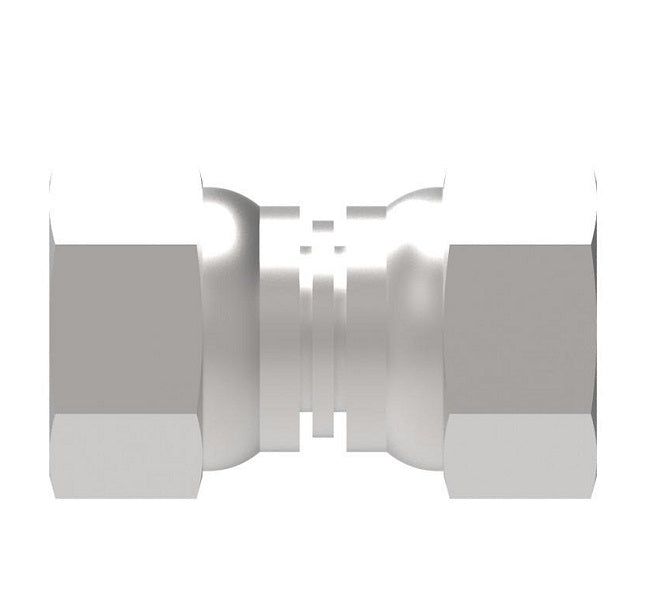

FF4285-2424S Aeroquip by Danfoss | JIC/JIC Adapter | -24 Female JIC x -24 Female JIC | Carbon Steel

FF4285-2424S Aeroquip by Danfoss | JIC/JIC Adapter | -24 Female JIC x -24 Female JIC | Carbon Steel

Name: FF4285-2424S Aeroquip by Danfoss | JIC/JIC Adapter | -24 Female JIC x -24 Female JIC | Carbon Steel
Brand: Danfoss/Eaton
SKU: FF4285-2424S Danfoss
Price: 18.96 USD
Availability: InStock

$18.96 - $18.96

$18.96

$18.96 - $18.96

$18.96

Aeroquip® by Danfoss
JIC 74°/ JIC 74° Adapter
Female JIC 74° x Female JIC 74°
Straight

Formerly Weatherhead series C5325x

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF4285-2424S Danfoss
Brand:	Aeroquip
Ends Configuration:	1-1/2in Female JIC, 1-1/2in Female JIC, Some Ends Match
Material(s):	Carbon Steel

Specifications:
ISO 8434-2


Steel Part Number	Tube OD	Thread T1	Thread T2	A
FF4285-0404S	0.25"	G 1/4-19	G 1/4-19	0.98"
FF4285-0606S	0.38"	G 3/8-19	G 3/8-19	1.06"
FF4285-0808S	0.50"	G 1/2-14	G 1/2-14	1.22"
FF4285-1010S	-	-	-	-
FF4285-1212S	0.75"	G 3/4-14	G 3/4-14	1.32"
FF4285-1616S	1.00"	G 1-11	G 1-11	1.44"
FF4285-2020S	-	-	-	-
FF4285-2424S	1.50"	G 1-1/2-11	G 1-1/2-11	1.65"
FF4285-3232S	2.00"	G 2-11	G 2-11	1.85"
