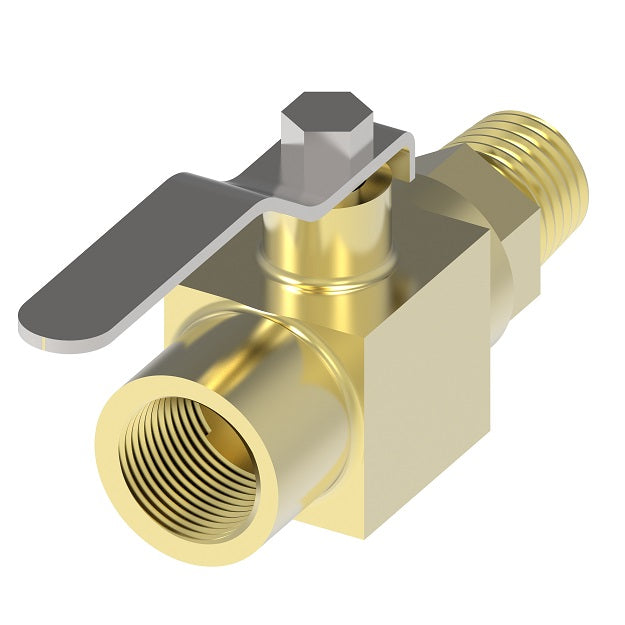

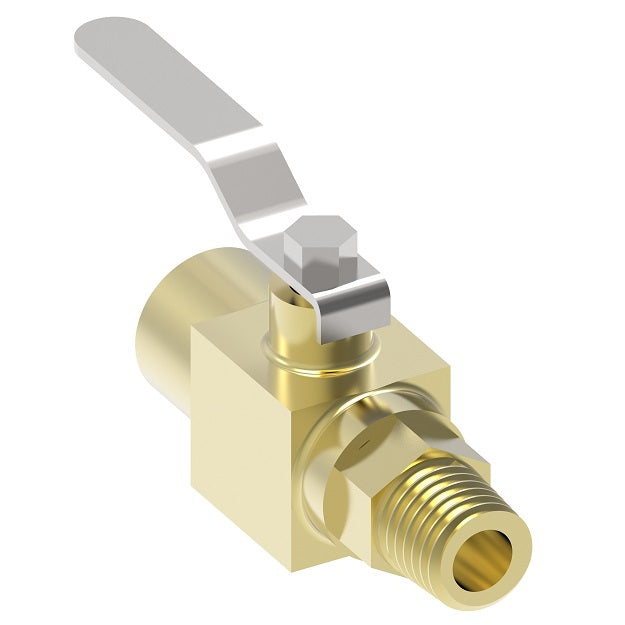

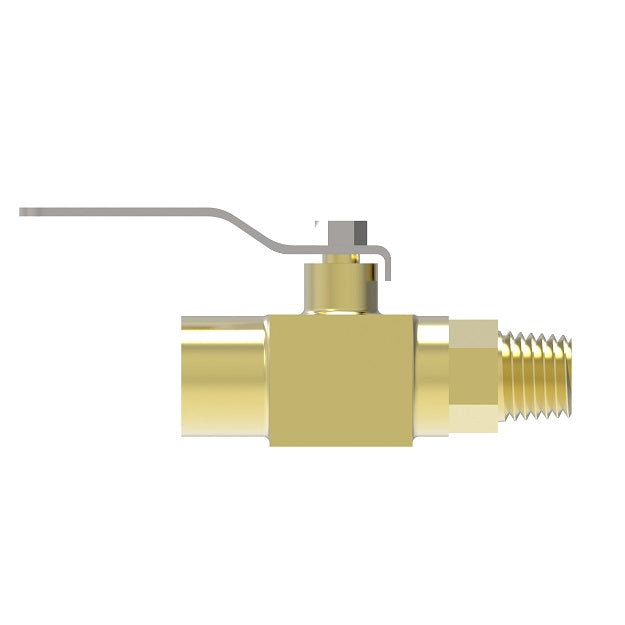

FF90588-04 by Danfoss | Ball Valve | Forged Body | 1/4" Male NPTF x 1/4" Female NPTF | Brass

FF90588-04 by Danfoss | Ball Valve | Forged Body | 1/4" Male NPTF x 1/4" Female NPTF | Brass

$36.08 - $36.08
$36.08
$36.08 - $36.08
$36.08

Aeroquip® by Danfoss
Ball Valve - Forged Body Brass Ball Valve
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FF90588-04 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Female NPTF
Material(s): Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service
  • Industrial service
  • Machine/engine coolant
  • Water service
  • Fuel tank - gasoline/diesel
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • Tamper proof design.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Forged brass body.
  • Chrome plated brass ball.
  • Standard steel handle.
Pressure:
  • Working pressure: 600 psig WOG @ 70ºF.
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/4" = .44"
  • 3/8" = .50"
  • 1/2" = .50"
  • 3/4" = .69"
  • 1" = .88"
  • 1-1/4" = 1.18"
  • 1-1/2" = 1.57"
  • 2" = 1.89"
Note:
  • Not steam rated.

Brass
Part Number		 Connections Size X Y Z D
FF90588-04 M x F NPT 1/4" 3.70" 2.38" 2.75" 1.13"
FF90588-06 M x F NPT 3/8" 3.70" 2.38" 2.75" 1.13"
FF90588-08 M x F NPT 1/2" 3.70" 2.38" 2.75" 1.13"
FF90588-16 M x F NPT 1" 4.50" 3.00" 4.00" 1.71"
FF90588-20 M x F NPT 1-1/4" 6.22" 3.01" 4.05" 1.83"
FF90588-24 M x F NPT 1-1/2" 6.22" 3.24" 4.35" 2.01"
FF90588-32 M x F NPT 2" 6.22" 3.52" 5.13" 2.38"
