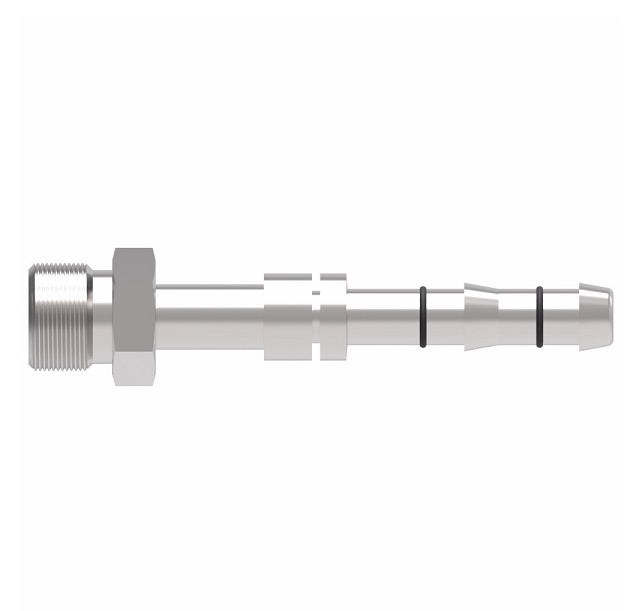

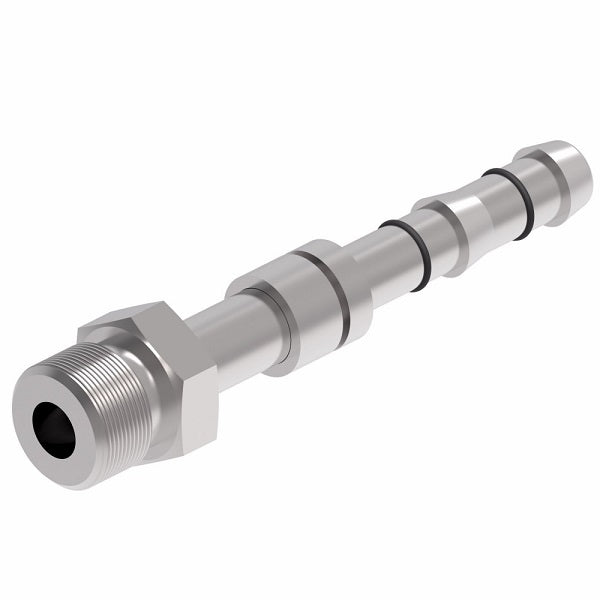

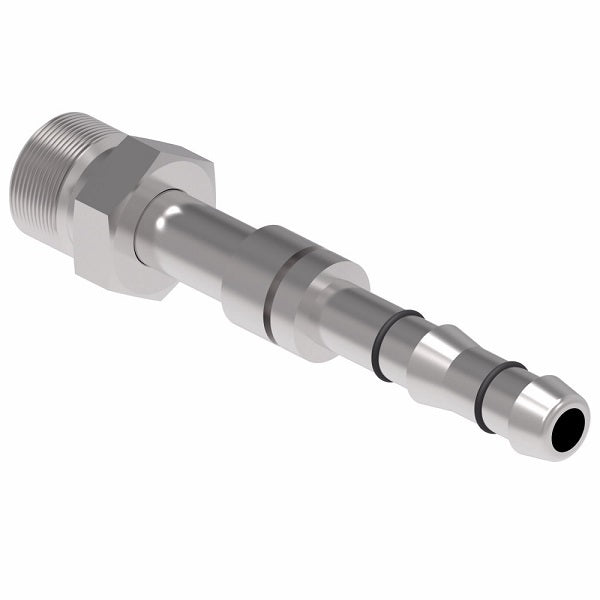

FJ3026-0606S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -06 Male MIO x -06 Hose Barb| Steel
FJ3026-0606S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -06 Male MIO x -06 Hose Barb | Steel
FJ3026-0606S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -06 Male MIO x -06 Hose Barb | Steel
FJ3026-0606S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -06 Male MIO x -06 Hose Barb| Steel

FJ3026-0606S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -06 Male MIO x -06 Hose Barb | Steel

$38.60 - $38.60
$38.60
$38.60 - $38.60
$38.60

Danfoss A/C & Refrigeration
E-Z Clip System - Male MIO (Male Insert O-Ring) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3026-0606S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/8in Male MIO, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3026-0606S 5/8-18 -06 3.36" 1.83" 0.690" FF14171 22546-11 FF90178-11
FJ3026-0808S 3/4-16 -08 2.69" 1.15" 0.810" FF14172 22546-13 FF90178-13
FJ3026-1010S 7/8-14 -10 2.90" 1.35" 0.940" FF14173 22546-15 FF90178-15
FJ3026-1012S 7/8-14 -12 4.11" 2.50" 0.940" FF14174 22546-15 FF90178-15
FJ3026-1212S 1-1/16-14 -12 4.29" 2.71" 1.125" FF14174 22546-17 FF90178-17
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
