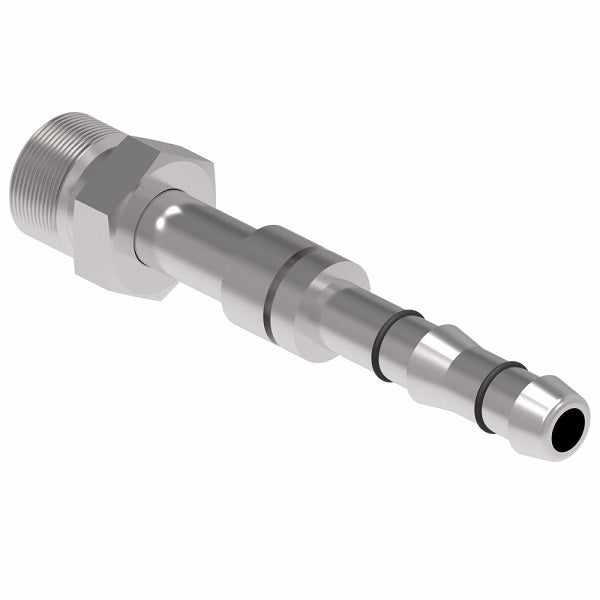

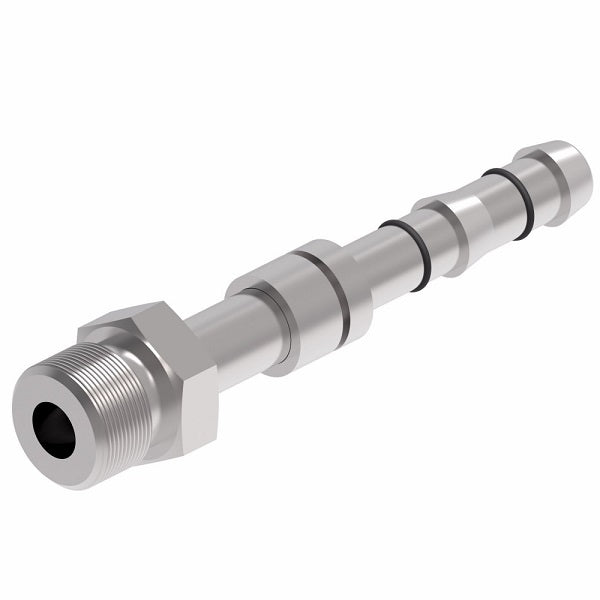

FJ3026-1212S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -12 Male MIO x -12 Hose Barb| Steel
FJ3026-1212S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -12 Male MIO x -12 Hose Barb | Steel
FJ3026-1212S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -12 Male MIO x -12 Hose Barb | Steel
FJ3026-1212S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -12 Male MIO x -12 Hose Barb| Steel

FJ3026-1212S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) | A/C Refrigeration Fitting | -12 Male MIO x -12 Hose Barb | Steel

$62.80 - $62.80
$62.80
$62.80 - $62.80
$62.80

Danfoss A/C & Refrigeration
E-Z Clip System - Male MIO (Male Insert O-Ring) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3026-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/4in Male MIO, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3026-0606S 5/8-18 -06 3.36" 1.83" 0.690" FF14171 22546-11 FF90178-11
FJ3026-0808S 3/4-16 -08 2.69" 1.15" 0.810" FF14172 22546-13 FF90178-13
FJ3026-1010S 7/8-14 -10 2.90" 1.35" 0.940" FF14173 22546-15 FF90178-15
FJ3026-1012S 7/8-14 -12 4.11" 2.50" 0.940" FF14174 22546-15 FF90178-15
FJ3026-1212S 1-1/16-14 -12 4.29" 2.71" 1.125" FF14174 22546-17 FF90178-17
