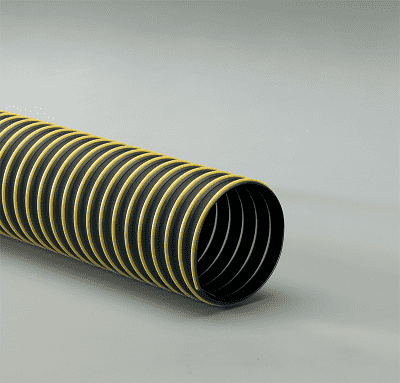

3-T-7W-25 Flexaust T-7W (T7W) 3 inch Dust and Material Handling Duct Hose - 25ft

3-T-7W-25 by Flexaust | #8901030025 | T-7W Series | Dust and Material Handling Duct Hose | 3 inch | 25ft

Save $13.67

$136.67

$136.67 - $136.67

$136.67

$123.00

$123.00 - $123.00

$123.00

Flexaust
Flexadux T-7W (T7W) Dust and Material Handling Duct Hose

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix & yellow external polypropylene wearstrip.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 3-T-7W-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	T-7W
Hose Color(s):	Black & Yellow
Internal Diameter:	3in
Tubing Construction:	Thermoplastic Rubber
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Car Wash, Furnace Duct Cleaning, Landfill Venting, Off-Road, Ozone, Paper Trim Conduit	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix and yellow external polypropylene wearstrip	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Wearstrip offers additional external abrasion & drag resistance. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Most general all-purpose hose. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
T-7W 2in	T-7W 2in	2"	.030"	2.42"	2:1	29	14	6.25 lbs	12.5 lbs
T-7W 2.25in	T-7W 2.25in	2.25"	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7W 2.5in	T-7W 2.5in	2.5"	.030"	2.75"	2:1	29	11	8.25 lbs	16.5 lbs
T-7W 3in	T-7W 3in	3"	.030"	3"	2:1	29	9.5	10 lbs	20 lbs
T-7W 3.5in	T-7W 3.5in	3.5"	.030"	4"	2:1	29	9	11.75 lbs	23.5 lbs
T-7W 4in	T-7W 4in	4"	.030"	5.5"	2:1	29	9	16.75 lbs	33.5 lbs
T-7W 5in	T-7W 5in	5"	.030"	5.5"	2:1	17	8	21.25 lbs	42.5 lbs
T-7W 6in	T-7W 6in	6"	.030"	5.5"	3:1	8.3	5	20.5 lbs	41 lbs
T-7W 7in	T-7W 7in	7"	.030"	7"	3:1	5.25	4.5	25 lbs	50 lbs
T-7W 8in	T-7W 8in	8"	.030"	8.25"	3:1	3.46	4	30 lbs	60 lbs
T-7W 10in	T-7W 10in	10"	.030"	10"	3:1	9.2	4	55 lbs	110 lbs
T-7W 12in	T-7W 12in	12"	.030"	12"	3:1	5.36	3.5	67.5 lbs	135 lbs
T-7W 14in	T-7W 14in	14"	.030"	9.5"	3:1	3	3.4	75 lbs	150 lbs
T-7W 16in	T-7W 16in	16"	.030"	11"	3:1	2.3	2.6	87.5 lbs	175 lbs
T-7W 18in	T-7W 18in	18"	.030"	12"	3:1	1.6	2.3	97.5 lbs	195 lbs
T-7W 20in	T-7W 20in	20"	.030"	13.5"	3:1	1.2	2.1	107.5 lbs	215 lbs
T-7W 22in	T-7W 22in	22"	.030"	15"	3:1	.9	1.9	110 lbs	220 lbs
T-7W 24in	T-7W 24in	24"	.030"	16"	3:1	.7	1.75	120 lbs	240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
