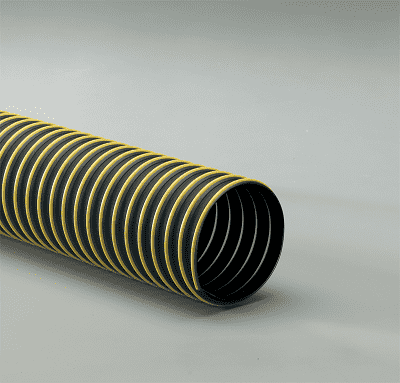

16-T-7W-25 Flexaust T-7W (T7W) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7W-25 Flexaust T-7W (T7W) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7W-25 Flexaust T-7W (T7W) 16 inch Dust and Material Handling Duct Hose - 25ft
16-T-7W-25 Flexaust T-7W (T7W) 16 inch Dust and Material Handling Duct Hose - 25ft

16-T-7W-25 by Flexaust | #8901160025 | T-7W Series | Dust and Material Handling Duct Hose | 16 inch | 25ft

Save $423.17 Save $423.17
$1,057.92
$1,057.92 - $1,057.92
$1,057.92
$634.75
$634.75 - $634.75
$634.75

Flexaust
Flexadux T-7W (T7W) Dust and Material Handling Duct Hose

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix & yellow external polypropylene wearstrip.

Package Quantity: 25 FT

Specifications for Variant SKU: 16-T-7W-25 Flexaust | 25 |
Brand: Flexadux TR
Series: T-7W
Hose Color(s): Black & Yellow
Internal Diameter: 16in
Tubing Construction: Thermoplastic Rubber
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Car Wash, Furnace Duct Cleaning, Landfill Venting, Off-Road, Ozone, Paper Trim Conduit SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black thermoplastic rubber
Reinforcement: Spring steel wire helix and yellow external polypropylene wearstrip Cover: N/A
Temperature Range: -60 deg. F to 275 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance.
  • Designed for applications with wide temperature ranges.
  • Great moisture & UV resistance.
  • Most general all-purpose hose.
  • Excellent chemical resistance.
  • Smooth interior assures minimal friction loss & efficient air flow.
Part Number
25 ft Reels		 Part Number
50 ft Reels		 Inside
Diameter		 Wall Thickness
(In)		 Centerline
Bend Radius (In)		 Compression
Ratio		 Negative Pressure
(In/Hg)		 Working Pressure
(PSI)		 Weight - 25ft
(Lbs/Ft)		 Weight - 50ft
(Lbs/Ft)
T-7W 2in T-7W 2in 2" .030" 2.42" 2:1 29 14 6.25 lbs 12.5 lbs
T-7W 2.25in T-7W 2.25in 2.25" N/A N/A N/A N/A N/A N/A N/A
T-7W 2.5in T-7W 2.5in 2.5" .030" 2.75" 2:1 29 11 8.25 lbs 16.5 lbs
T-7W 3in T-7W 3in 3" .030" 3" 2:1 29 9.5 10 lbs 20 lbs
T-7W 3.5in T-7W 3.5in 3.5" .030" 4" 2:1 29 9 11.75 lbs 23.5 lbs
T-7W 4in T-7W 4in 4" .030" 5.5" 2:1 29 9 16.75 lbs 33.5 lbs
T-7W 5in T-7W 5in 5" .030" 5.5" 2:1 17 8 21.25 lbs 42.5 lbs
T-7W 6in T-7W 6in 6" .030" 5.5" 3:1 8.3 5 20.5 lbs 41 lbs
T-7W 7in T-7W 7in 7" .030" 7" 3:1 5.25 4.5 25 lbs 50 lbs
T-7W 8in T-7W 8in 8" .030" 8.25" 3:1 3.46 4 30 lbs 60 lbs
T-7W 10in T-7W 10in 10" .030" 10" 3:1 9.2 4 55 lbs 110 lbs
T-7W 12in T-7W 12in 12" .030" 12" 3:1 5.36 3.5 67.5 lbs 135 lbs
T-7W 14in T-7W 14in 14" .030" 9.5" 3:1 3 3.4 75 lbs 150 lbs
T-7W 16in T-7W 16in 16" .030" 11" 3:1 2.3 2.6 87.5 lbs 175 lbs
T-7W 18in T-7W 18in 18" .030" 12" 3:1 1.6 2.3 97.5 lbs 195 lbs
T-7W 20in T-7W 20in 20" .030" 13.5" 3:1 1.2 2.1 107.5 lbs 215 lbs
T-7W 22in T-7W 22in 22" .030" 15" 3:1 .9 1.9 110 lbs 220 lbs
T-7W 24in T-7W 24in 24" .030" 16" 3:1 .7 1.75 120 lbs 240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
