24-T-7W-25 Flexaust T-7W (T7W) 24 inch Dust and Material Handling Duct Hose - 25ft

24-T-7W-25 by Flexaust | #8901240025 | T-7W Series | Dust and Material Handling Duct Hose | 24 inch | 25ft

Save $720.50

$1,801.25

$1,801.25 - $1,801.25

$1,801.25

$1,080.75

$1,080.75 - $1,080.75

$1,080.75

Flexaust
Flexadux T-7W (T7W) Dust and Material Handling Duct Hose

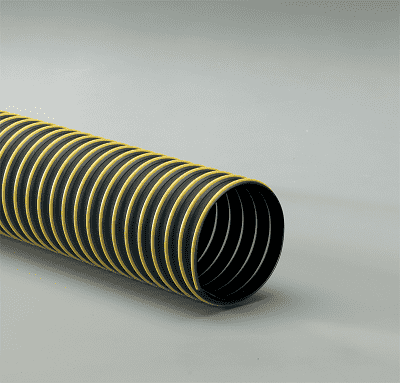

Medium weight black thermoplastic rubber hose reinforced with a spring steel wire helix & yellow external polypropylene wearstrip.

Package Quantity: 25 FT

Specifications for Variant SKU: 24-T-7W-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	T-7W
Hose Color(s):	Black & Yellow
Internal Diameter:	24in
Tubing Construction:	Thermoplastic Rubber
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Car Wash, Furnace Duct Cleaning, Landfill Venting, Off-Road, Ozone, Paper Trim Conduit	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix and yellow external polypropylene wearstrip	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Wearstrip offers additional external abrasion & drag resistance. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Most general all-purpose hose. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
T-7W 2in	T-7W 2in	2"	.030"	2.42"	2:1	29	14	6.25 lbs	12.5 lbs
T-7W 2.25in	T-7W 2.25in	2.25"	N/A	N/A	N/A	N/A	N/A	N/A	N/A
T-7W 2.5in	T-7W 2.5in	2.5"	.030"	2.75"	2:1	29	11	8.25 lbs	16.5 lbs
T-7W 3in	T-7W 3in	3"	.030"	3"	2:1	29	9.5	10 lbs	20 lbs
T-7W 3.5in	T-7W 3.5in	3.5"	.030"	4"	2:1	29	9	11.75 lbs	23.5 lbs
T-7W 4in	T-7W 4in	4"	.030"	5.5"	2:1	29	9	16.75 lbs	33.5 lbs
T-7W 5in	T-7W 5in	5"	.030"	5.5"	2:1	17	8	21.25 lbs	42.5 lbs
T-7W 6in	T-7W 6in	6"	.030"	5.5"	3:1	8.3	5	20.5 lbs	41 lbs
T-7W 7in	T-7W 7in	7"	.030"	7"	3:1	5.25	4.5	25 lbs	50 lbs
T-7W 8in	T-7W 8in	8"	.030"	8.25"	3:1	3.46	4	30 lbs	60 lbs
T-7W 10in	T-7W 10in	10"	.030"	10"	3:1	9.2	4	55 lbs	110 lbs
T-7W 12in	T-7W 12in	12"	.030"	12"	3:1	5.36	3.5	67.5 lbs	135 lbs
T-7W 14in	T-7W 14in	14"	.030"	9.5"	3:1	3	3.4	75 lbs	150 lbs
T-7W 16in	T-7W 16in	16"	.030"	11"	3:1	2.3	2.6	87.5 lbs	175 lbs
T-7W 18in	T-7W 18in	18"	.030"	12"	3:1	1.6	2.3	97.5 lbs	195 lbs
T-7W 20in	T-7W 20in	20"	.030"	13.5"	3:1	1.2	2.1	107.5 lbs	215 lbs
T-7W 22in	T-7W 22in	22"	.030"	15"	3:1	.9	1.9	110 lbs	220 lbs
T-7W 24in	T-7W 24in	24"	.030"	16"	3:1	.7	1.75	120 lbs	240 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
