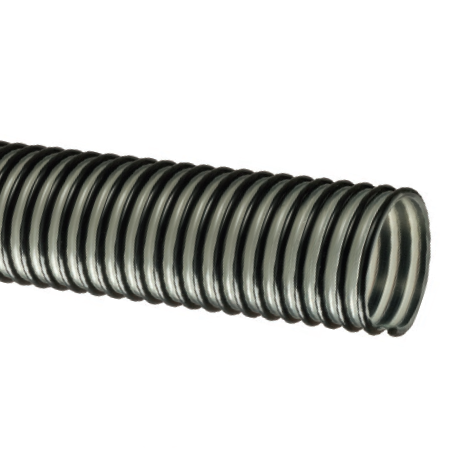

GC-C400X100 Kuriyama Tigerflex GC-C Series Ground Cover Heavy Duty Polyurethane Lined Material Handling Hose - 4" - 100ft

GC-C400X100 Tigerflex by Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 4" ID | Polyurethane | 100ft Length

Save $193.63

$1,936.30

$1,936.30 - $1,936.30

$1,936.30

$1,742.67

$1,742.67 - $1,742.67

$1,742.67

Kuriyama Tigerflex GC-C™ Series Ground Cover Heavy Duty Polyurethane Lined Material Handling Hose

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: GC-C400X100 Kuriyama \| 100 \|
Brand:	Tigerflex
Series:	GC-C Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	4in
Outer Diameter:	4.59in
Tubing Construction:	Polyurethane
Cover Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Material handling - heavy duty abrasive, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Polyurethane
Reinforcement:	Rigid PVC Helix	Cover:	PVC
Temperature Range:	-40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses. "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels. Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow. Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Min. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
GC-C400X100	4"	101.6mm	4.59"	116.6mm	30 PSI	15 PSI	28 in. Hg	25 in. Hg	6"	100ft	1.00 lbs
GC-C500X100	5"	127.0mm	5.57"	141.5mm	30 PSI	15 PSI	25 in. Hg	20 in. Hg	10"	100ft	1.80 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
