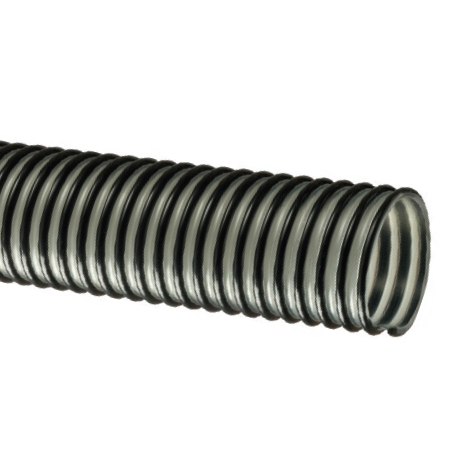

GC-C500X100 Tigerflex by Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length

GC-C500X100 Tigerflex by Kuriyama | GC-C Series | Ground Cover Heavy Duty Lined Material Handling Hose | 5" ID | Polyurethane | 100ft Length

Save $256.15 Save $256.15
$2,561.48
$2,561.48 - $2,561.48
$2,561.48
$2,305.33
$2,305.33 - $2,305.33
$2,305.33

Kuriyama Tigerflex GC-C™ Series Ground Cover Heavy Duty Polyurethane Lined Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: GC-C500X100 Kuriyama | 100 |
Brand: Tigerflex
Series: GC-C Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 5in
Outer Diameter: 5.57in
Tubing Construction: Polyurethane
Cover Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Material handling - heavy duty abrasive, Soil, seed and compost delivery, Mulch, bark, wood chips and other surfacing material delivery SAE Rating: N/A
Other Ratings: N/A Tube: Polyurethane
Reinforcement: Rigid PVC Helix Cover: PVC
Temperature Range: -40 deg. F (-40 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • Abrasion Resistant Polyurethane Liner - designed for dry applications where severe abrasion is a factor. Provides longer hose life and lower operating costs versus rubber or PVC hoses.
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Convoluted Outer Cover - Provides increased hose flexibility. Allows for easier unwinding and winding on hose reels.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Oil Resistant Polyurethane Liner - Resists most animal and petroleum based oils.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Min. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
GC-C400X100 4" 101.6mm 4.59" 116.6mm 30 PSI 15 PSI 28 in. Hg 25 in. Hg 6" 100ft 1.00 lbs
GC-C500X100 5" 127.0mm 5.57" 141.5mm 30 PSI 15 PSI 25 in. Hg 20 in. Hg 10" 100ft 1.80 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
