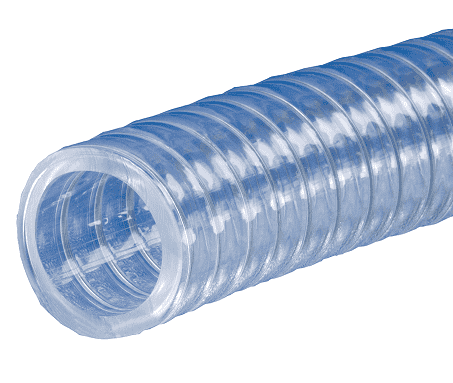

K7160-20X50 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 1-1/4" ID | 1.609" OD | PVC | 50ft Length

Save $24.81 Save $24.81
Original price $247.41
Original price $247.41 - Original price $247.41
Original price $247.41
Current price $222.60
$222.60 - $222.60
Current price $222.60

Kuriyama Kuri Tec® POLYSPRING® Series K7160 Standard Wall PVC Food & Beverage Vacuum/Transfer Hose Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 50 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: K7160-20X50 Kuriyama | 50 |
Brand: Kuri Tec
Series: K7160 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1.25in
Outer Diameter: 1.609in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement: Helically-wound spring steel wire Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), USP(18)
Other Features:
  • 29.9" HG vacuum rating.
  • Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures.
  • Crystal clear - allows visual confirmation of product flow.
  • Glass-smooth interior - reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation.
  • Resistant to chemicals (see chemical-resistance chart).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7160-04X100 1/4" 6.4mm .460" 11.7mm 150 PSI 70 PSI 100 ft. 7 lbs. 1"
K7160-06X100 3/8" 9.5mm .600" 15.2mm 100 PSI 70 PSI 100 ft. 11 lbs. 1-1/2"
K7160-08X100 1/2" 12.7mm .750" 19.1mm 100 PSI 70 PSI 100 ft. 15 lbs. 2"
K7160-10X100 5/8" 15.9mm .891" 22.6mm 100 PSI 50 PSI 100 ft. 19 lbs. 2-1/2"
K7160-12X100 3/4" 19.1mm 1.031" 26.2mm 70 PSI 50 PSI 100 ft. 24 lbs. 3"
K7160-16X100 1" 25.4mm 1.297" 32.9mm 70 PSI 35 PSI 100 ft. 33 lbs. 4"
K7160-20X50 1-1/4" 31.8mm 1.609" 40.9mm 70 PSI 35 PSI 50 ft. 25 lbs. 5"
K7160-24X50 1-1/2" 38.1mm 1.860" 47.2mm 50 PSI 30 PSI 50 ft. 29 lbs. 6"
K7160-32X50 2" 50.8mm 2.391" 60.7mm 50 PSI 30 PSI 50 ft. 42 lbs. 8"
K7160-36X50 2-1/4" 57.2mm 2.750" 69.9mm 50 PSI 30 PSI 50 ft. 58 lbs. 9"
K7160-40X50 2-1/2" 63.5mm 3.000" 76.2mm 50 PSI 30 PSI 50 ft. 69 lbs. 10"
K7160-48X50 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 50 ft. 81 lbs. 12"
K7160-48X25 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 25 ft. 40.5 lbs. 12"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
