K7160-48X50 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 3" ID | 3.500" OD | PVC | 50ft Length

K7160-48X50 Kuri-Tec by Kuriyama | Polyspring K7160 Series | Standard Wall PVC Food & Beverage Vacuum/Transfer Hose | 3" ID | 3.500" OD | PVC | 50ft Length

Save $345.48 Save $345.48
$1,209.18
$1,209.18 - $1,209.18
$1,209.18
$863.70
$863.70 - $863.70
$863.70

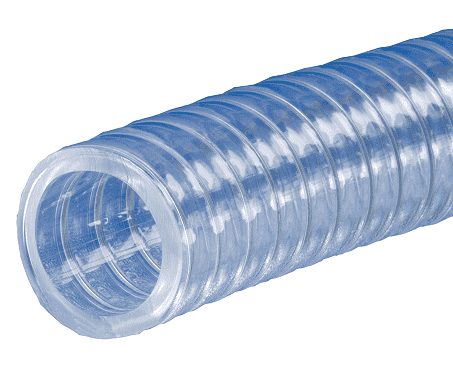

Kuriyama Kuri Tec® POLYSPRING® Series K7160 Standard Wall PVC Food & Beverage Vacuum/Transfer Hose Standard wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 50 FT

Specifications for Variant SKU: K7160-48X50 Kuriyama | 50 |
Brand: Kuri Tec
Series: K7160 Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 3in
Outer Diameter: 3.50in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement: Helically-wound spring steel wire Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17), USP(18)
Other Features:
  • 29.9" HG vacuum rating.
  • Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures.
  • Crystal clear - allows visual confirmation of product flow.
  • Glass-smooth interior - reduces material buildup.
  • Electrogalvanized helical steel wire can be used for static dissipation.
  • Resistant to chemicals (see chemical-resistance chart).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7160-04X100 1/4" 6.4mm .460" 11.7mm 150 PSI 70 PSI 100 ft. 7 lbs. 1"
K7160-06X100 3/8" 9.5mm .600" 15.2mm 100 PSI 70 PSI 100 ft. 11 lbs. 1-1/2"
K7160-08X100 1/2" 12.7mm .750" 19.1mm 100 PSI 70 PSI 100 ft. 15 lbs. 2"
K7160-10X100 5/8" 15.9mm .891" 22.6mm 100 PSI 50 PSI 100 ft. 19 lbs. 2-1/2"
K7160-12X100 3/4" 19.1mm 1.031" 26.2mm 70 PSI 50 PSI 100 ft. 24 lbs. 3"
K7160-16X100 1" 25.4mm 1.297" 32.9mm 70 PSI 35 PSI 100 ft. 33 lbs. 4"
K7160-20X50 1-1/4" 31.8mm 1.609" 40.9mm 70 PSI 35 PSI 50 ft. 25 lbs. 5"
K7160-24X50 1-1/2" 38.1mm 1.860" 47.2mm 50 PSI 30 PSI 50 ft. 29 lbs. 6"
K7160-32X50 2" 50.8mm 2.391" 60.7mm 50 PSI 30 PSI 50 ft. 42 lbs. 8"
K7160-36X50 2-1/4" 57.2mm 2.750" 69.9mm 50 PSI 30 PSI 50 ft. 58 lbs. 9"
K7160-40X50 2-1/2" 63.5mm 3.000" 76.2mm 50 PSI 30 PSI 50 ft. 69 lbs. 10"
K7160-48X50 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 50 ft. 81 lbs. 12"
K7160-48X25 3" 76.2mm 3.500" 88.9mm 50 PSI 30 PSI 25 ft. 40.5 lbs. 12"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
