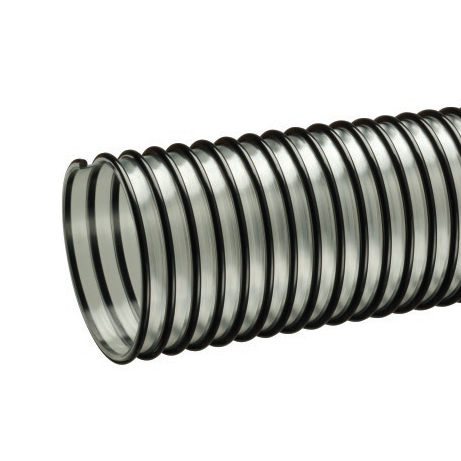

LKC400X100 Kuriyama Tigerflex LKC Series Lawn King PVC Ducting/Material Handling Hose - 4" - 100ft

LKC400X100 Tigerflex by Kuriyama | LKC Series | Lawn King Ducting/Material Handling Hose | 4" ID | PVC | 100ft Length

Save $286.80 Save $286.80
$1,003.80
$1,003.80 - $1,003.80
$1,003.80
$717.00
$717.00 - $717.00
$717.00

Kuriyama Tigerflex LKC™ Series Lawn King PVC Ducting/Material Handling Hose


Package Quantity: 100 FT

Specifications for Variant SKU: LKC400X100 Kuriyama | 100 |
Brand: Tigerflex
Series: LKC Series
Hose Color(s): Black & Clear/Semi-Clear
Internal Diameter: 4in
Outer Diameter: 4.57in
Tubing Construction: PVC
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Outer Helix Protection

SPECIFICATIONS

Application: Dust collection, Lawn and leaf collection, Material handling - light duty SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -20 deg. F (-29 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(10)
Other Features:
  • "Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures.
  • Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle.
  • Transparent Construction (LKC series only) - "See-the flow." Allows for visual confirmation of material flow.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
LKC400X100 4" 101.6mm 4.45" 114.8mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 100ft 0.85 lbs
LKC400X50 4" 101.6mm 4.45" 114.8mm 8 PSI 4 PSI 13 in. Hg 7 in. Hg 3" 50ft 0.85 lbs
LKC400X50 5" 128.0mm 5.55" 141.0mm 7 PSI 3 PSI 10 in. Hg 6 in. Hg 5" 100ft 0.93 lbs
LKC600X100 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 100ft 1.34 lbs
LKC600X50 6" 152.4mm 6.63" 168.3mm 6 PSI 3 PSI 7 in. Hg 5 in. Hg 6" 50ft 1.34 lbs
LKC700X50 7" 177.8mm 7.56" 192.0mm 4 PSI 2 PSI 6 in. Hg 4 in. Hg 7" 50ft 1.53 lbs
LKC800X50 8" 203.2mm 8.63" 219.3mm 4 PSI 2 PSI 5 in. Hg 3 in. Hg 8" 50ft 2.00 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed.Not for liquid handling use. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
