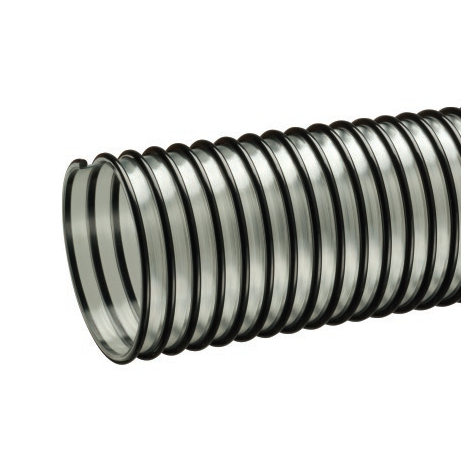

LKC700X50 Kuriyama Tigerflex LKC Series Lawn King PVC Ducting/Material Handling Hose - 7" - 50ft

LKC700X50 Tigerflex by Kuriyama | LKC Series | Lawn King Ducting/Material Handling Hose | 7" ID | PVC | 50ft Length

Save $310.92

$1,088.22

$1,088.22 - $1,088.22

$1,088.22

$777.30

$777.30 - $777.30

$777.30

Kuriyama Tigerflex LKC™ Series Lawn King PVC Ducting/Material Handling Hose

Package Quantity: 50 FT

Specifications for Variant SKU: LKC700X50 Kuriyama \| 50 \|
Brand:	Tigerflex
Series:	LKC Series
Hose Color(s):	Black & Clear/Semi-Clear
Internal Diameter:	7in
Outer Diameter:	7.56in
Tubing Construction:	PVC
Applicable Specs & Approvals:	RoHS Compliant
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Application:	Dust collection, Lawn and leaf collection, Material handling - light duty	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	PVC
Reinforcement:	Rigid PVC Helix	Cover:	N/A
Temperature Range:	-20 deg. F (-29 deg. C) to 150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	RoHS(10)
"Cold-Flex" Materials - Hose remains flexible in sub-zero temperatures. Easy Slide Helix - Rigid helix design protects hose tube from cover wear, and allows hose to slide easily over rough surfaces. Easy-to-handle. Transparent Construction (LKC series only) - "See-the flow." Allows for visual confirmation of material flow.

Part Number	ID	ID	OD	OD	Working Pressure (PSI)		Vacuum Rating (in. Hg)		Approx. Bending Radius	Standard Length	Weight (Lbs/Ft)
	(in.)	(mm)	(in.)	(mm)	68 deg. F	104 deg. F	68 deg. F	104 deg. F	(in @ 68 deg. F)	(ft.)
LKC400X100	4"	101.6mm	4.45"	114.8mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	100ft	0.85 lbs
LKC400X50	4"	101.6mm	4.45"	114.8mm	8 PSI	4 PSI	13 in. Hg	7 in. Hg	3"	50ft	0.85 lbs
LKC400X50	5"	128.0mm	5.55"	141.0mm	7 PSI	3 PSI	10 in. Hg	6 in. Hg	5"	100ft	0.93 lbs
LKC600X100	6"	152.4mm	6.63"	168.3mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	100ft	1.34 lbs
LKC600X50	6"	152.4mm	6.63"	168.3mm	6 PSI	3 PSI	7 in. Hg	5 in. Hg	6"	50ft	1.34 lbs
LKC700X50	7"	177.8mm	7.56"	192.0mm	4 PSI	2 PSI	6 in. Hg	4 in. Hg	7"	50ft	1.53 lbs
LKC800X50	8"	203.2mm	8.63"	219.3mm	4 PSI	2 PSI	5 in. Hg	3 in. Hg	8"	50ft	2.00 lbs

NOTE: Service life may vary depending on operating conditions and type of material being conveyed.Not for liquid handling use. *Actual service temperature range is application dependent.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
