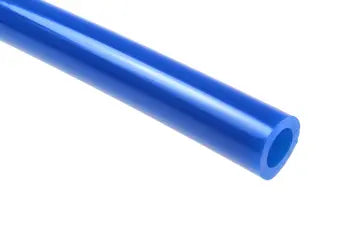

NC2525-1000B by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Blue | Nylon | 1000ft

Save $19.19

$172.68

$172.68 - $172.68

$172.68

$153.49

$153.49 - $153.49

$153.49

Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 5/32" OD x .106" ID

Quantity

Specifications for Variant SKU: NC2525-1000B Coilhose
Hose Color(s):	Blue
Material(s):	Nylon

Overview:
Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:
Dimensional stability makes it compatible with: Coilock Fittings Poly-Tube Fittings

Temperature Range:	-60° F to 200° F	Vacuum Rating:	To 28" Hg.
Diameter Tolerances:	.0.002"; -0.004" All inch sizes +0.051 mm; -.1 mm All Metric sizes	Hardness:	78 Rockwell R
Working Pressure:	4 to 1 Safety Factor	Compliance:	Meets UL94HB
UV Stabilized:	Yes

Part Number 100ft Length	Part Number 1000ft Length	Part Number 2500ft Length	Color	O.D. x I.D.	Wall Thickness	WorkingPressure at 75° F
NC2525-100K	NC2525-1000K	NC2525-2500K	Black	5/32" x .106"	.025"	350 PSI
NC2525-100Y	NC2525-1000Y	NC2525-2500Y	Yellow
NC2525-100R	NC2525-1000R	NC2525-2500R	Red
NC2525-100Q	-	-	Orange
NC2525-100N	NC2525-1000N	NC2525-2500N	Natural
NC2525-100G	NC2525-1000G	NC2525-2500G	Green
NC2525-100B	NC2525-1000B	NC2525-2500B	Blue
