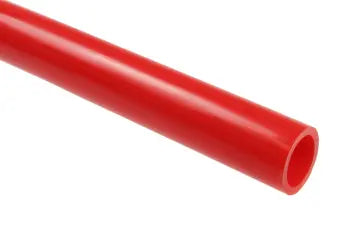

NC2525-100R by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Red | Nylon | 100ft

NC2525-100R by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Red | Nylon | 100ft

Save $2.20 Save $2.20
$19.81
$19.81 - $19.81
$19.81
$17.61
$17.61 - $17.61
$17.61
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 5/32" OD x .106" ID
Specifications for Variant SKU: NC2525-100R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
1000ft Length		 Part Number
2500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC2525-100K NC2525-1000K NC2525-2500K Black 5/32" x .106" .025" 350 PSI
NC2525-100Y NC2525-1000Y NC2525-2500Y Yellow
NC2525-100R NC2525-1000R NC2525-2500R Red
NC2525-100Q - - Orange
NC2525-100N NC2525-1000N NC2525-2500N Natural
NC2525-100G NC2525-1000G NC2525-2500G Green
NC2525-100B NC2525-1000B NC2525-2500B Blue
