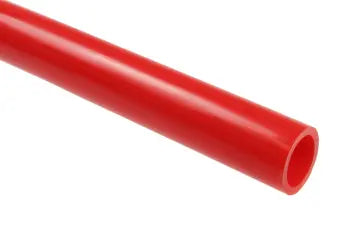

NC2525-2500R by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Red | Nylon | 2500ft

NC2525-2500R by Coilhose | Tubing | 5/32" OD x .106" ID | .025" Wall thickness | Red | Nylon | 2500ft

Save $44.98 Save $44.98
$404.78
$404.78 - $404.78
$404.78
$359.80
$359.80 - $359.80
$359.80
Coilhose Pneumatics - Plastic Tubing - Nylon Tubing - 5/32" OD x .106" ID
Specifications for Variant SKU: NC2525-2500R Coilhose
Hose Color(s): Red
Material(s): Nylon
Overview:
  • Coilhose Pneumatics offers high quality Nylon 11 Tubing for applications requiring low density, lightweight toughness, flexibility and chemical resistance. Its Dimensional stability makes it compatible with . Lengths of 100 feet are packaged in plastic bags; longer lengths are on reels.
Features:

Temperature Range: -60° F to 200° F Vacuum Rating: To 28" Hg.
Diameter Tolerances: .0.002"; -0.004" All inch sizes
+0.051 mm; -.1 mm All Metric sizes		 Hardness: 78 Rockwell R
Working Pressure: 4 to 1 Safety Factor Compliance: Meets UL94HB
UV Stabilized: Yes

Part Number
100ft Length		 Part Number
1000ft Length		 Part Number
2500ft Length		 Color O.D. x I.D. Wall Thickness WorkingPressure at 75° F
NC2525-100K NC2525-1000K NC2525-2500K Black 5/32" x .106" .025" 350 PSI
NC2525-100Y NC2525-1000Y NC2525-2500Y Yellow
NC2525-100R NC2525-1000R NC2525-2500R Red
NC2525-100Q - - Orange
NC2525-100N NC2525-1000N NC2525-2500N Natural
NC2525-100G NC2525-1000G NC2525-2500G Green
NC2525-100B NC2525-1000B NC2525-2500B Blue
Coilhose Pneumatics

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
