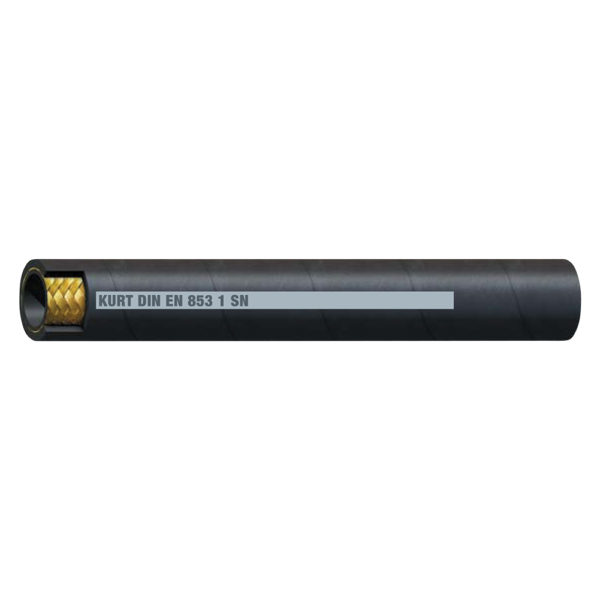

R1S-10 by Kurt Hydraulics | R1S Series | 0.625in ID x 0.93in ID | 1885 MAWP | 1-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R1-S, DIN EN 853 1SN, Applicable MSHA Standards | Black | 220ft Reel

Save $67.83 Save $67.83
Original price $610.50
Original price $610.50 - Original price $610.50
Original price $610.50
Current price $542.67
$542.67 - $542.67
Current price $542.67

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 220 Feet

Specifications for Variant SKU: R1S-10 Kurt | 220 |
Series: R1S Series
Hose Color(s): Black
Dash Size: -10
Internal Diameter: 0.625in
Outer Diameter: 0.93in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Applicable Specs & Approvals: SAE 100R1-S, DIN EN 853 1SN, Applicable MSHA Standards

Recommended for: Medium pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.) Weight (Lb/Ft)
R1S-04 1/4 0.51 3,250 13,000 4 0.13
R1S-06 3/8 0.61 2,500 10,000 5 0.19
R1S-08 1/2 0.79 2,250 9,000 7 0.24
R1S-10 5/8 0.91 1,750 7,000 8 0.30
R1S-12 3/4 1.07 1,500 6,000 9.5 0.38
R1S-16 1 1.38 1,250 5,000 12 0.56
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
