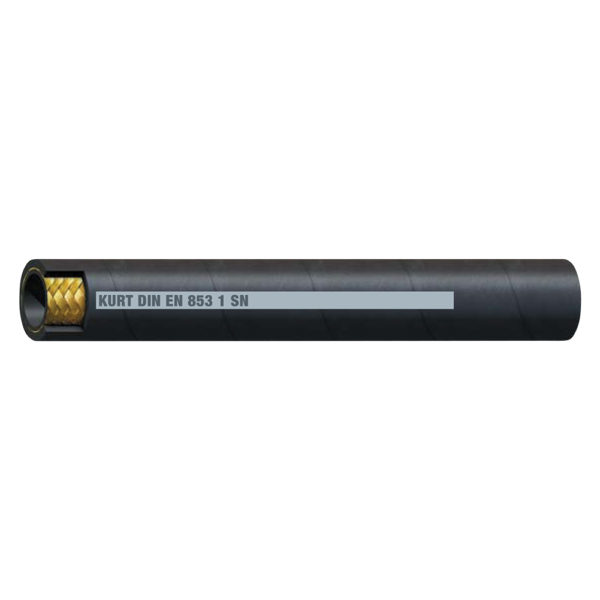

R1S-12 by Kurt Hydraulics | R1S Series | 0.75in ID x 1.09in ID | 1525 MAWP | 1-Wire Hydraulic Hose with Nitrile Tube and Neoprene Cover | SAE 100R1-S, DIN EN 853 1SN, Applicable MSHA Standards | Black | 220ft Reel

Save $75.53

$679.80

$679.80 - $679.80

$679.80

$604.27

$604.27 - $604.27

$604.27

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 220 Feet

Quantity

Specifications for Variant SKU: R1S-12 Kurt \| 220 \|
Series:	R1S Series
Hose Color(s):	Black
Dash Size:	-12
Internal Diameter:	0.75in
Outer Diameter:	1.09in
Tubing Construction:	Nitrile
Cover Construction:	Neoprene
Applicable Specs & Approvals:	SAE 100R1-S, DIN EN 853 1SN, Applicable MSHA Standards

Recommended for: Medium pressure hydraulic oil lines
Tube: Oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, ozone and weather resistant synthetic rubber
Meets: Flame resistant MSHA designation
Temperature Range: -40°F to +212°F (+250°F Max)

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)	Weight (Lb/Ft)
R1S-04	1/4	0.51	3,250	13,000	4	0.13
R1S-06	3/8	0.61	2,500	10,000	5	0.19
R1S-08	1/2	0.79	2,250	9,000	7	0.24
R1S-10	5/8	0.91	1,750	7,000	8	0.30
R1S-12	3/4	1.07	1,500	6,000	9.5	0.38
R1S-16	1	1.38	1,250	5,000	12	0.56

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
