R508-12X12 Couplamatic R5 Series Coupling - JIC 37° - Male Solid - 5/8" Hose ID - 1-1/16x12 Thread Size

R508-12X12 by Couplamatic | R5 Series Coupling | 5/8" Hose ID x 1-1/16x12 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $8.27

$82.70

$82.70 - $82.70

$82.70

$74.43

$74.43 - $74.43

$74.43

Couplamatic Systems Inc.
R5 Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: R508-12X12 Couplamatic \| 10 \|
Series:	R5 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male JIC, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	58MBA Series \| HTR5 Hi-Temp R5 Series

Description:
The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

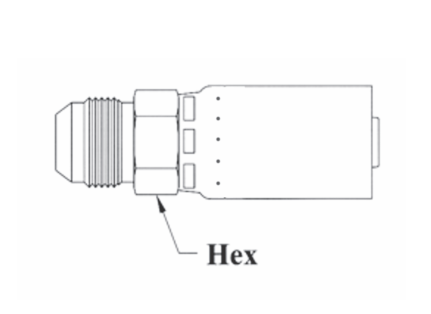

Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Nut Hex	Weatherhead 069E
R508-4X4	3/16"	1/4"	7/16x20	9/16"	06904E-504
R508-5X5	1/4"	5/16"	1/2x20	9/16"	06905E-505
R508-6X6	5/16"	3/8"	9/16x18	5/8"	06906E-506
R508-8X8	13/32"	1/2"	3/4x16	7/8"	06908E-508
R508-10X10	1/2"	5/8"	7/8x14	15/16"	06910E-510
R508-12X12	5/8"	3/4"	1-1/16x12	1-1/8"	06912E-512
R508-16X16	7/8"	1"	1-5/16x12	1-3/8"	06916E-516

Hydraulic Hose ends for:
100R5 textile cover hose 58MBA & HTR5 Hi-Temp R5
