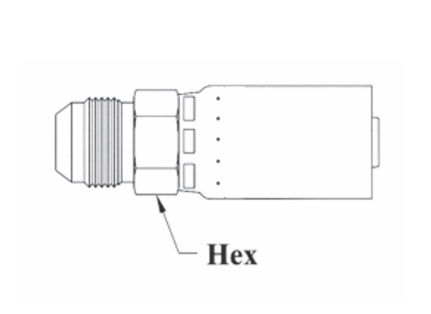

R508-10X10 Couplamatic R5 Series Coupling - JIC 37° - Male Solid - 1/2" Hose ID - 7/8x14 Thread Size

R508-10X10 by Couplamatic | R5 Series Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $7.16 Save $7.16
$64.47
$64.47 - $64.47
$64.47
$57.31
$57.31 - $57.31
$57.31

Couplamatic Systems Inc.
R5 Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: R508-10X10 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male JIC, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R508-4X4 3/16" 1/4" 7/16x20 9/16" 06904E-504
R508-5X5 1/4" 5/16" 1/2x20 9/16" 06905E-505
R508-6X6 5/16" 3/8" 9/16x18 5/8" 06906E-506
R508-8X8 13/32" 1/2" 3/4x16 7/8" 06908E-508
R508-10X10 1/2" 5/8" 7/8x14 15/16" 06910E-510
R508-16X16 7/8" 1" 1-5/16x12 1-3/8" 06916E-516
