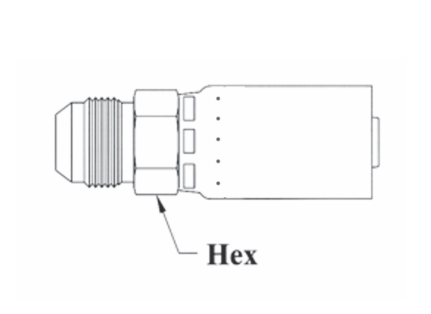

R508-5X5 Couplamatic R5 Series Coupling - JIC 37° - Male Solid - 1/4" Hose ID - 1/2x20 Thread Size

R508-5X5 by Couplamatic | R5 Series Coupling | 1/4" Hose ID x 1/2x20 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $3.90 Save $3.90
$35.12
$35.12 - $35.12
$35.12
$31.22
$31.22 - $31.22
$31.22

Couplamatic Systems Inc.
R5 Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: R508-5X5 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 5/16in Male JIC, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Pipe Size Thread Size Nut Hex Cross Reference Part Numbers
Weatherhead 069E
R508-4X4 3/16" 1/4" 7/16x20 9/16" 06904E-504
R508-5X5 1/4" 5/16" 1/2x20 9/16" 06905E-505
R508-6X6 5/16" 3/8" 9/16x18 5/8" 06906E-506
R508-8X8 13/32" 1/2" 3/4x16 7/8" 06908E-508
R508-10X10 1/2" 5/8" 7/8x14 15/16" 06910E-510
R508-16X16 7/8" 1" 1-5/16x12 1-3/8" 06916E-516
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
