R530-12X12 Couplamatic R5 Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 5/8" Hose ID - 1-3/16x12 Thread Size

R530-12X12 by Couplamatic | R5 Series Coupling | 5/8" Hose ID x 1-3/16x12 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $14.99 Save $14.99
$134.88
$134.88 - $134.88
$134.88
$119.89
$119.89 - $119.89
$119.89

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R530-12X12 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

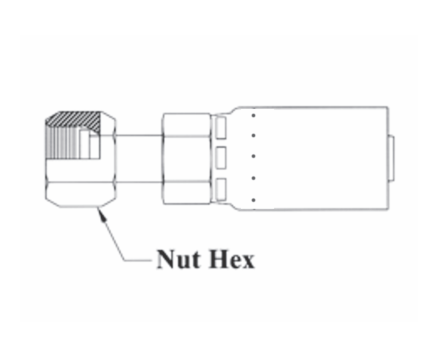

Part Number Hose ID Thread Size Tube OD Nut Hex
R530-4X4 3/16" 9/16x18 1/4" 11/16"
R530-6X6 5/16" 11/16x16 3/8" 13/16"
R530-8X8 13/32" 13/16x16 1/2" 15/16"
R530-12X12 5/8" 1-3/16x12 3/4" 1-3/8"
