R530-6X6 Couplamatic R5 Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 5/16" Hose ID - 11/16x16 Thread Size

R530-6X6 by Couplamatic | R5 Series Coupling | 5/16" Hose ID x 11/16x16 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $40.32

$100.80

$100.80 - $100.80

$100.80

$60.48

$60.48 - $60.48

$60.48

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R530-6X6 Couplamatic \| 10 \|
Series:	R5 Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female O-Ring Face Seal, 5/16in Hose Barb
Material(s):	Steel
Compatible with the following Series:	58MBA Series \| HTR5 Hi-Temp R5 Series

Description:
The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

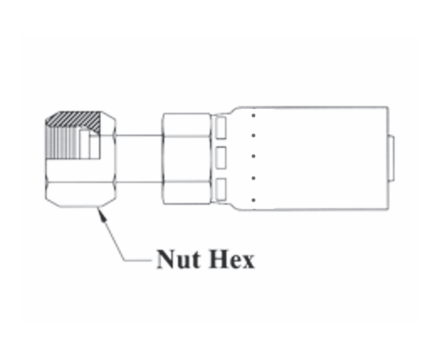

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex
R530-4X4	3/16"	9/16x18	1/4"	11/16"
R530-6X6	5/16"	11/16x16	3/8"	13/16"
R530-8X8	13/32"	13/16x16	1/2"	15/16"
R530-12X12	5/8"	1-3/16x12	3/4"	1-3/8"
