R530-4X4 Couplamatic R5 Series Coupling - O-Ring Face Seal (ORF) - Female Swivel - 3/16" Hose ID - 9/16x18 Thread Size

R530-4X4 by Couplamatic | R5 Series Coupling | 3/16" Hose ID x 9/16x18 Thread Size O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Pack of 10

Save $6.47 Save $6.47
$58.22
$58.22 - $58.22
$58.22
$51.75
$51.75 - $51.75
$51.75

Couplamatic Systems Inc.
R5 Series - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 10 EA

Specifications for Variant SKU: R530-4X4 Couplamatic | 10 |
Series: R5 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Female O-Ring Face Seal, 3/16in Hose Barb
Material(s): Steel
Compatible with the following Series: 58MBA Series  |   HTR5 Hi-Temp R5 Series
Description:
  • The R5 Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.

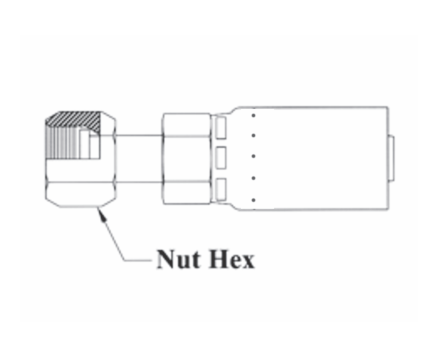

Part Number Hose ID Thread Size Tube OD Nut Hex
R530-4X4 3/16" 9/16x18 1/4" 11/16"
R530-6X6 5/16" 11/16x16 3/8" 13/16"
R530-8X8 13/32" 13/16x16 1/2" 15/16"
R530-12X12 5/8" 1-3/16x12 3/4" 1-3/8"
