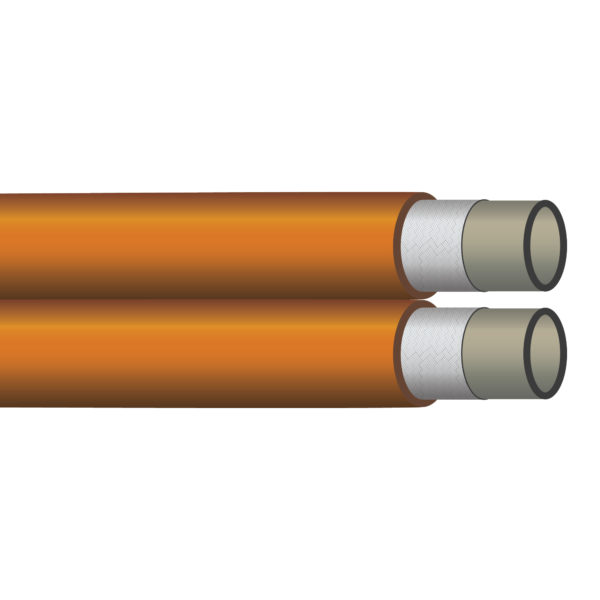

R7-06-TW-NC by Kurt Hydraulics | R7-NC Series | 0.375in ID x 0.645in ID | 2250 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Orange | 250ft Reel

R7-06-TW-NC by Kurt Hydraulics | R7-NC Series | 0.375in ID x 0.645in ID | 2250 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Orange | 250ft Reel

Save $131.67 Save $131.67
$1,185.00
$1,185.00 - $1,185.00
$1,185.00
$1,053.33
$1,053.33 - $1,053.33
$1,053.33

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Specifications for Variant SKU: R7-06-TW-NC Kurt | 250 |
Series: R7-NC Series
Hose Color(s): Orange
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.645in
Tubing Construction: Polyester
Cover Construction: Polyurethane
Applicable Specs & Approvals: SAE 100R7

Recommended for: Medium pressure hydraulic oil lines for non-conductive twin-line applications
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F

Part Number Hose I.D. (in.) Hose O.D. (in.) Rated W.P. (psi) Min. Burst (psi) Min. Bend (in.)
R7-04-TW-NC 1/4 0.49 3,000 12,000 2.5
R7-05-TW-NC 5/16 0.59 2,500 10,000 3.0
R7-06-TW-NC 3/8 0.65 2,250 9,000 3.5
R7-08-TW-NC 1/2 0.81 2,000 8,000 5.5
Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
