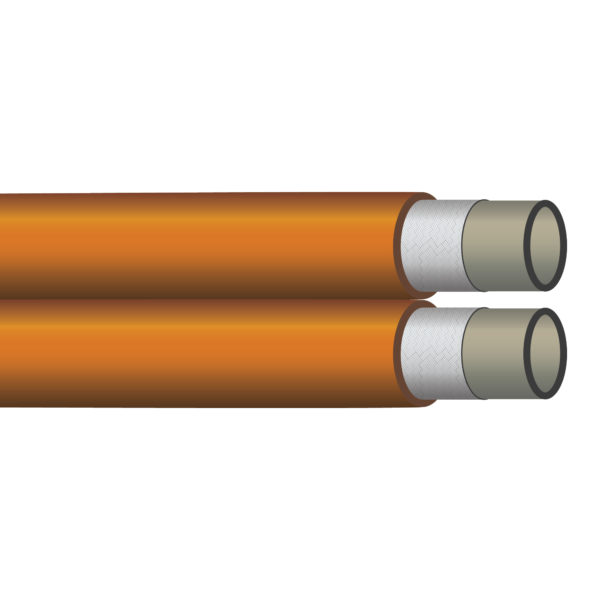

R7-08-TW-NC by Kurt Hydraulics | R7-NC Series | 0.50in ID x 0.76in ID | 2000 MAWP | Non-Conductive Thermoplastic Hydraulic Hose with Polyester Tube and Polyurethane Cover | SAE 100R7 | Orange | 250ft Reel

Save $888.89

$2,222.22

$2,222.22 - $2,222.22

$2,222.22

$1,333.33

$1,333.33 - $1,333.33

$1,333.33

by Kurt Hydraulics

Kurt Fittings and Hose should only be used together.

Package Quantity: 250 Feet

Specifications for Variant SKU: R7-08-TW-NC Kurt \| 250 \|
Series:	R7-NC Series
Hose Color(s):	Orange
Dash Size:	-08
Internal Diameter:	0.50in
Outer Diameter:	0.76in
Tubing Construction:	Polyester
Cover Construction:	Polyurethane
Applicable Specs & Approvals:	SAE 100R7

Recommended for: Medium pressure hydraulic oil lines for non-conductive twin-line applications
Tube: Thermoplastic
Reinforcement: Synthetic fiber
Cover: Abrasion, ozone and weather resistant orange urethane
Temperature Range: -40°F to +212°F

Part Number	Hose I.D. (in.)	Hose O.D. (in.)	Rated W.P. (psi)	Min. Burst (psi)	Min. Bend (in.)
R7-04-TW-NC	1/4	0.49	3,000	12,000	2.5
R7-05-TW-NC	5/16	0.59	2,500	10,000	3.0
R7-06-TW-NC	3/8	0.65	2,250	9,000	3.5
R7-08-TW-NC	1/2	0.81	2,000	8,000	5.5

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
