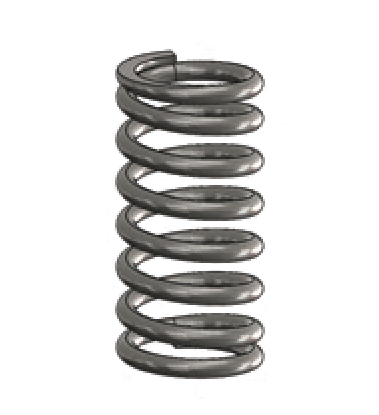

SPR-S100 Dixon Valve 1-1/2" & 2" Sanitary Pressure Relief Valve Replacement Part - Spring (100 PSI) - 316L Stainless Steel

SPR-S100 Dixon Valve 1-1/2" & 2" Sanitary Pressure Relief Valve Replacement Part - Spring (100 PSI) - 316L Stainless Steel

Save $1.84 Save $1.84
$29.12
$29.12 - $29.12
$29.12
$27.28
$27.28 - $27.28
$27.28

Dixon Sanitary Fittings
Sanitary Pressure Relief Valve - Replacement Part

Suitable for liquids and gas.
Specifications for Variant SKU: SPR-S100 Dixon
Features:
  • Valve opens when the set pressure is reached to prevent excess pressure in piping or systems.
  • Valve body made from solid bar.
  • Patented squeeze clamp.
  • Low spare part cost.
  • Clamp End connection.
  • Actuation: Manual.
  • Maximum Operating Temperature [Sterilization]: 300°F (148°C) (Maximum 20 min)
Materials:
  • Wetted Product Surfaces: 32Ra
  • Product Contact: 316L Stainless Steel
  • Non product contact: 304 Stainless Steel
Specifications:
  • 3-A Certified
Part Number Item Number Part Quantity Material
1-1/2" 2"
SPR-LBDY150 SPR-LBDY200 1 L body 1 316L Stainless Steel
SPR-TBDY150 SPR-TBDY200 1A T body 1 316L Stainless Steel
SPR-SSV / SPR-SSE SPR-SSV / SPR-SSE 2 Seat seal 1 FKM / EPDM
SPR-STEM150 SPR-STEM200 3 Stem 1 316L Stainless Steel
SPR-WSHR SPR-WSHR 4 Washer 1 304 Stainless Steel
40IV150 / 40IE150 40IV200 / 40IE200 5 Body gasket 1 FKM / EPDM
SPR-SH150 SPR-SH200 6 Stem holder 1 316L Stainless Steel
SPR-SOV / SPR-SOE SPR-SOV / SPR-SOE 7 Stem O-ring 1 FKM / EPDM
SPR-ADPTR150 SPR-ADPTR200 8 Adapter 1 304 Stainless Steel
SPR-LN SPR-LN 9 Locking nut 1 304 Stainless Steel
SPR-S50 / SPR-S100 / SPR-S300 SPR-S50 / SPR-S100 / SPR-S300 10 Spring
(50 PSI / 100 PSI / 300 PSI)		 1 316L Stainless Steel
SPR-TOPCAP SPR-TOPCAP 11 Top cap 1 304 Stainless Steel
SPR-ADJSTCAP SPR-ADJSTCAP 12 Adjustable cap 1 304 Stainless Steel
13IL-Q100150 13IL-Q200 13 Clamp 1 304 Stainless Steel
